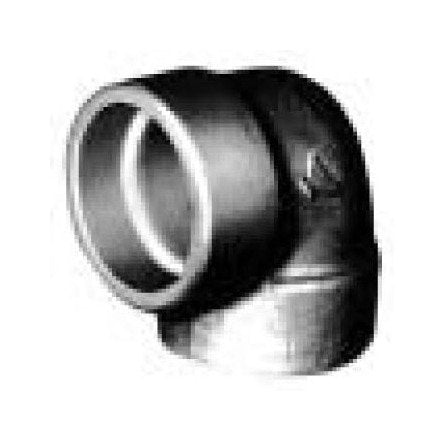

Forged Steel 90-Degree Elbows Class 3000 Socket-Weld, NPS 3/4
Forged Steel 90-Degree Elbows Class 3000 Socket-Weld, NPS 3/4
SKU:FIT-5605f3
High-quality Forged Steel 90-Degree Elbows for industrial piping, Class 3000 Socket-Weld, NPS 3/4. Optimal flow control with precise dimensions.
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Initiate Order
Forged Steel 90-Degree Elbows Class 3000 Socket-Weld, NPS 3/4
$219.99
Quantity: 1
Claim Your Seller Account
Forged Steel 90-Degree Elbows Class 3000 Socket-Weld, NPS 3/4
$219.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

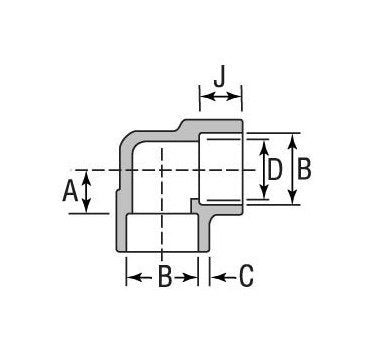

Our Forged Steel 90-Degree Elbows Class 3000 Socket-Weld are designed with precision to ensure optimal flow control in industrial piping systems. Made from high-quality materials, these elbows feature Socket Diameter B options of 27mm or 28mm, a Bore Diameter D of 20mm or 22mm, and a Minimum Socket Depth J of 13mm. With a nominal Dimension A of 19mm and a sturdy Dimension C of 4mm, these elbows provide durability and efficiency in installation. Weighing 31kg per 100 pieces, they offer reliability and performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Bore Diameter D
20 mm | 22 mm
Specifications Dimension A Nominal
19 mm
Specifications Dimension C Min
4 mm
Specifications Dn
20
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
3/4
Specifications Socket Diameter B
27 mm | 28 mm
Specifications Weight100 Pieces
31 kg
