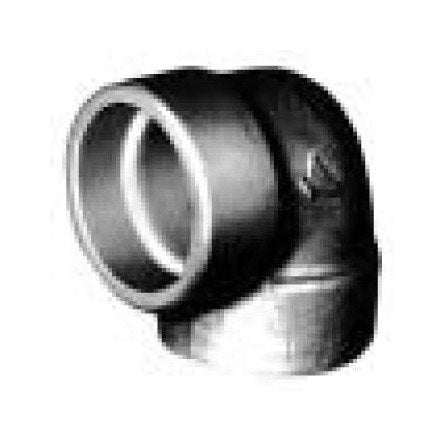

Forged Steel 90° Elbows Class 3000 Socket-Weld, 1/4" NPS
Forged Steel 90° Elbows Class 3000 Socket-Weld, 1/4" NPS
SKU:FIT-9659e8
Premium Forged Steel 90° Elbows for Class 3000 Socket-Weld fittings, size 1/4" NPS. Ensure leak-free connections and optimal flow.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Forged Steel 90° Elbows Class 3000 Socket-Weld, 1/4" NPS
$45.99
Quantity: 1
Claim Your Seller Account
Forged Steel 90° Elbows Class 3000 Socket-Weld, 1/4" NPS
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Forged Steel 90° Elbows Class 3000 Socket-Weld, size 1/4" NPS, are expertly designed for durability and precision in industrial piping systems. With a Socket Diameter of 14 mm and 15 mm, Bore Diameter of 8 mm and 10 mm, and a Weight of 5.9 kg per 100 pieces, these elbows ensure leak-free connections and optimal flow. Meeting stringent ASTM standards and crafted with high-grade materials, these elbows are ideal for heavy-duty applications in various industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Bore Diameter D
8 mm | 10 mm
Specifications Dimension A Nominal
11 mm
Specifications Dimension C Min
3 mm
Specifications Dn
8
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
1/4
Specifications Socket Diameter B
14 mm | 15 mm
Specifications Weight100 Pieces
5.9 kg
