Forged Steel Blind Flange - Class 150, 3 1/2"

Name: Forged Steel Blind Flange - Class 150, 3 1/2"
Brand: Caylor Industrial Sales, Inc.
SKU: FIT-91fe66
Price: 79.99 USD
Availability: OutOfStock

SKU:FIT-91fe66

High-quality Forged Steel Blind Flange - Class 150, ideal for secure connections in industrial settings. Meets stringent industry standards.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

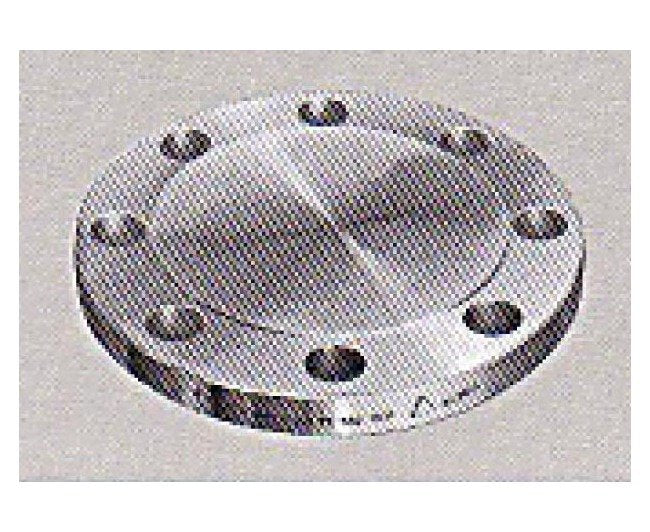

The Forged Steel Blind Flange in Class 150 is expertly designed for optimal performance. With precise specifications including a Nominal Pipe Size of 3 1/2 inches, Outside Diameter of 8.50 inches, and a sturdy construction of 0.94 inches Thickness, this blind flange ensures secure connectivity and durability. Compliant with industry standards, it offers versatility and reliability for a wide range of applications.

Product Specifications

Features 0

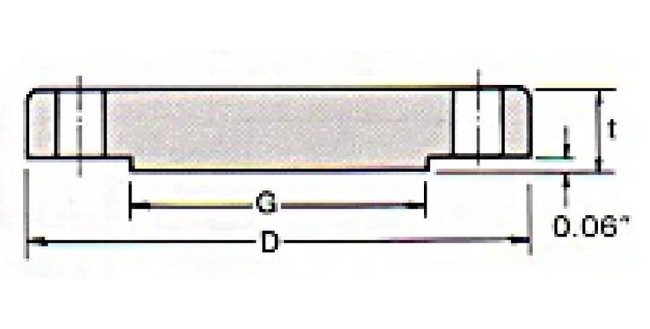

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.

Specifications Approx Weight

13.00 lbs

Specifications Bolt Circle Diameter

7.00 inches

Specifications Diameter Of Bolts

5/8 inches

Specifications Diameter Of Holes

0.75 inches

Specifications Machine Bolt Length Raised Face

3.00 inches

Specifications Nominal Pipe Size

3 1/2 inches

Specifications Number Of Holes

Specifications Od Of Raised Face G

5.50 inches

Specifications Outside Diameter D

8.50 inches

Specifications Stud Bolt Length Raised Face

3.50 inches

Specifications Stud Bolt Length Ring Joint

4.00 inches

Specifications Thickness T

0.94 inches

Forged Steel Blind Flange - Class 150, 3 1/2"
