Forged Steel Blind Flange Class 300, 16 inches
Forged Steel Blind Flange Class 300, 16 inches
SKU:FIT-e51739
Heavy-duty 16" Class 300 blind flange for industrial piping, featuring precise specifications and versatile design.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Forged Steel Blind Flange Class 300, 16 inches
$499.99
Quantity: 1
Claim Your Seller Account
Forged Steel Blind Flange Class 300, 16 inches
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

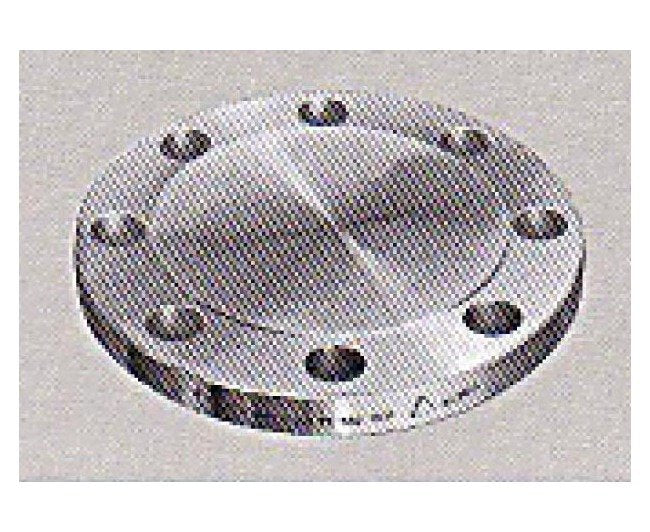

The Forged Steel Blind Flange in Class 300 is a heavy-duty fitting designed for critical applications in industrial settings. With precise specifications including a Nominal Pipe Size of 16 inches, Outside Diameter of 25.50 inches, and a sturdy Thickness of 2.25 inches, this blind flange ensures reliable sealing and joint integrity. Meeting Class 300 flange standards, it features a 0.06" raised face, offering enhanced stability and alignment. Whether used with Slip-On, Threaded, Socket Welding, or Lap Joint Flanges, its versatile design accommodates various installation requirements without compromising on durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

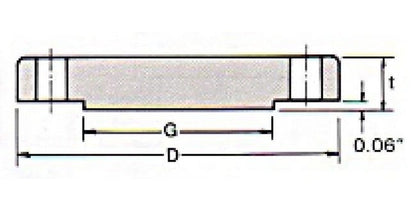

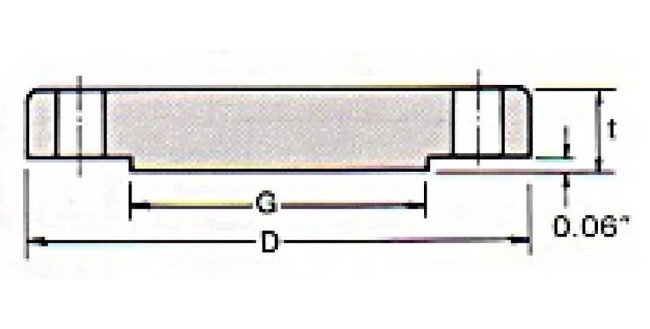

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
307.00 lbs
Specifications Bolt Circle Diameter
22.50 inches
Specifications Diameter Of Bolts
1 1/4 inches
Specifications Diameter Of Holes
1.38 inches
Specifications Machine Bolt Length Raised Face
6.50 inches
Specifications Nominal Pipe Size
16 inches
Specifications Number Of Holes
20
Specifications Od Of Raised Face G
18.50 inches
Specifications Outside Diameter D
25.50 inches
Specifications Stud Bolt Length Raised Face
7.50 inches
Specifications Stud Bolt Length Ring Joint
8.00 inches
Specifications Thickness T
2.25 inches
