Forged Steel Class 150 Blind Flange
Forged Steel Class 150 Blind Flange
SKU:FIT-5193c7
Precision-crafted Forged Steel Class 150 Blind Flange with 0.06" raised face for leak-free connections. Conforms to ANSI B16.5 standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Forged Steel Class 150 Blind Flange
$59.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 150 Blind Flange
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

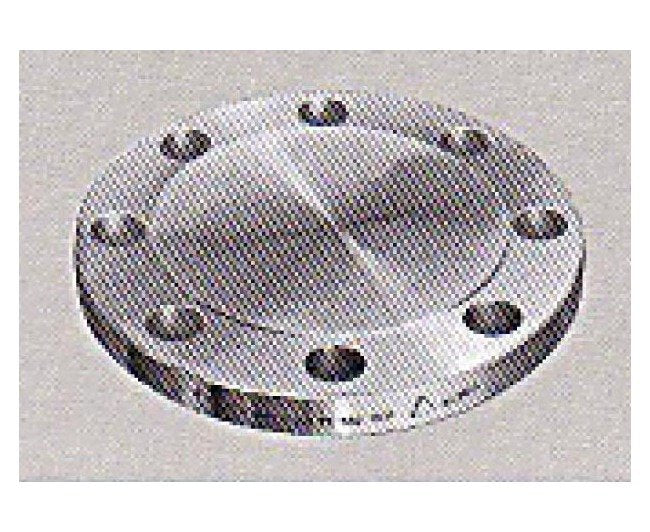

The Forged Steel Class 150 Blind Flange is a vital component for piping systems, crafted to precise specifications to ensure a secure and leak-free connection. This blind flange comes with a 0.06" raised face for optimal sealing, conforms to ANSI B16.5 standards, and offers versatility in hub design. Suitable for a wide range of applications, this blind flange guarantees durability and reliability in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

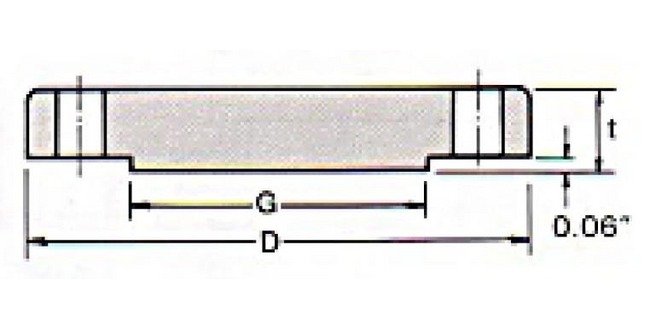

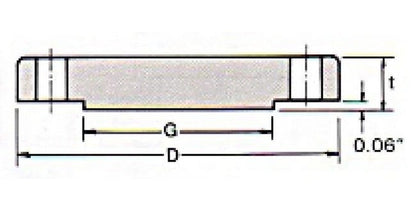

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
9.00 lbs
Specifications Bolt Circle Diameter
5.50 inches
Specifications Diameter Of Bolts
5/8 inches
Specifications Diameter Of Holes
0.75 inches
Specifications Machine Bolt Length Raised Face
3.00 inches
Specifications Nominal Pipe Size
2 1/2 inches
Specifications Number Of Holes
4
Specifications Od Of Raised Face G
4.12 inches
Specifications Outside Diameter D
7.00 inches
Specifications Stud Bolt Length Raised Face
3.50 inches
Specifications Stud Bolt Length Ring Joint
4.00 inches
Specifications Thickness T
0.88 inches
