Forged Steel Class 150 Blind Flange 10"
Forged Steel Class 150 Blind Flange 10"
SKU:FIT-5db07b
Premium Forged Steel Class 150 Blind Flange - 10" - High-performance, ANSI B16.5 compliant, ideal for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Forged Steel Class 150 Blind Flange 10"
$129.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 150 Blind Flange 10"
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

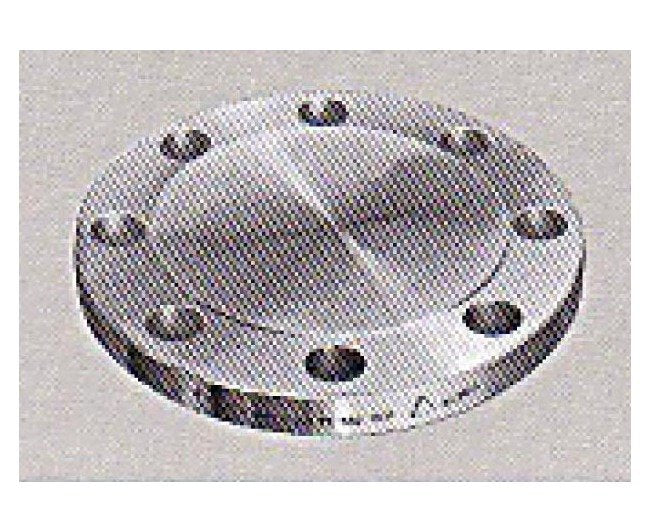

The Forged Steel Class 150 Blind Flange in 10 inches size is a robust and reliable component designed for industrial applications requiring high pressure and temperature resistance. With precise specifications including a 16.00 inches outside diameter and 1.19 inches thickness, this blind flange ensures secure sealing and efficient operation. Compliant with ANSI B16.5 standards, it features a raised face, parallel gasket surface, and backside for seamless bolting. Whether used in oil refineries, chemical plants, or HVAC systems, this blind flange offers exceptional performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

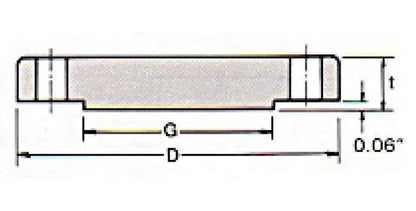

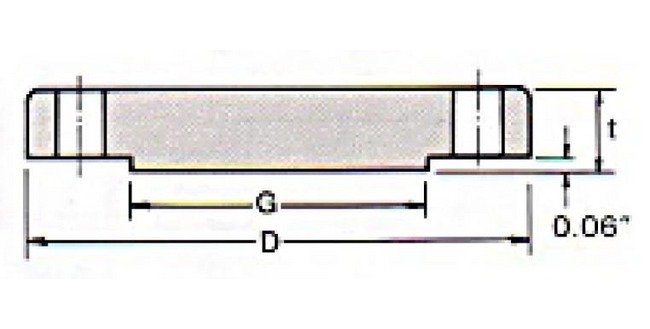

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
64.80 lbs
Specifications Bolt Circle Diameter
14.25 inches
Specifications Diameter Of Bolts
7/8 inches
Specifications Diameter Of Holes
1.00 inches
Specifications Machine Bolt Length Raised Face
4.00 inches
Specifications Nominal Pipe Size
10 inches
Specifications Number Of Holes
12
Specifications Od Of Raised Face G
12.75 inches
Specifications Outside Diameter D
16.00 inches
Specifications Stud Bolt Length Raised Face
4.50 inches
Specifications Stud Bolt Length Ring Joint
5.00 inches
Specifications Thickness T
1.19 inches
