Forged Steel Class 150 Blind Flange 14"
Forged Steel Class 150 Blind Flange 14"
SKU:FIT-22e635
Premium Forged Steel Class 150 Blind Flange, 14", ANSI B16.5 compliant, ideal for industrial piping systems.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Forged Steel Class 150 Blind Flange 14"
$199.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 150 Blind Flange 14"
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

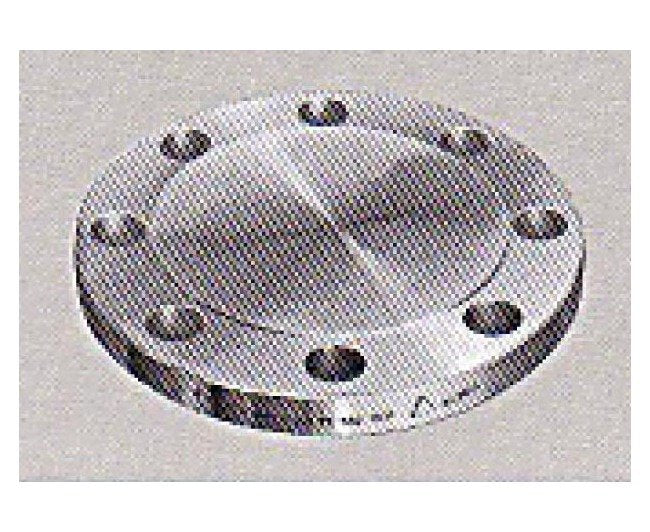

The Forged Steel Class 150 Blind Flange, designed for 14-inch Nominal Pipe Size, is a reliable component in industrial piping systems. Meeting ANSI B16.5 standards, this blind flange boasts a 1.38-inch thickness, 140.00 lbs weight, and precise dimensions for seamless installation. Its raised face and parallel gasket surfaces ensure secure sealing, while the option for hub customization adds versatility in application. Ideal for Class 150 flange requirements, this blind flange is a dependable choice for critical operations.
Product Specifications
Features 0

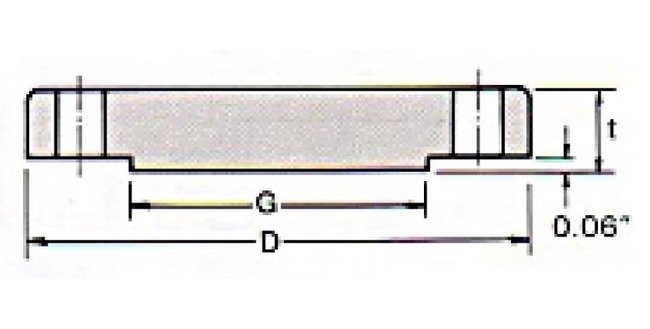

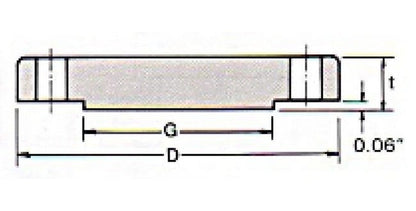

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
140.00 lbs
Specifications Bolt Circle Diameter
18.75 inches
Specifications Diameter Of Bolts
1 inches
Specifications Diameter Of Holes
1.12 inches
Specifications Machine Bolt Length Raised Face
4.50 inches
Specifications Nominal Pipe Size
14 inches
Specifications Number Of Holes
12
Specifications Od Of Raised Face G
16.25 inches
Specifications Outside Diameter D
21.00 inches
Specifications Stud Bolt Length Raised Face
5.25 inches
Specifications Stud Bolt Length Ring Joint
5.75 inches
Specifications Thickness T
1.38 inches
