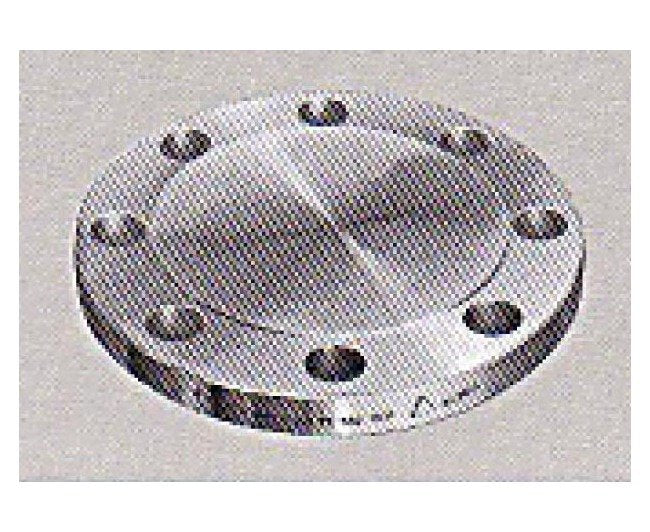

Forged Steel Class 150 Blind Flange - 24 inches
Forged Steel Class 150 Blind Flange - 24 inches
SKU:FIT-5bea0d
High-quality Forged Steel Class 150 Blind Flange - 24 inches, ANSI B16.5 compliant
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Forged Steel Class 150 Blind Flange - 24 inches
$399.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 150 Blind Flange - 24 inches
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Steel Class 150 Blind Flange in 24 inches offers a robust solution for industrial piping systems. With specifications meeting stringent standards, including a 1.88-inch thickness and 415.00 lbs weight, this flange ensures secure sealing and structural integrity. Its Class 150 designation guarantees performance reliability, making it suitable for a wide range of applications. Compliant with ANSI B16.5 and MSS SP-9 standards, this blind flange delivers exceptional quality and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

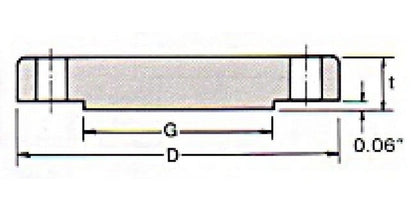

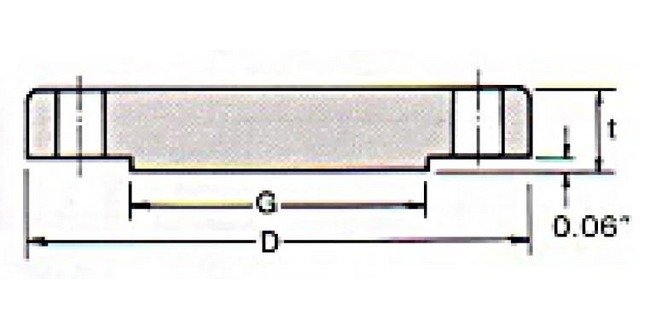

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
415.00 lbs
Specifications Bolt Circle Diameter
29.50 inches
Specifications Diameter Of Bolts
1 1/4 inches
Specifications Diameter Of Holes
1.38 inches
Specifications Machine Bolt Length Raised Face
6.00 inches
Specifications Nominal Pipe Size
24 inches
Specifications Number Of Holes
20
Specifications Od Of Raised Face G
27.25 inches
Specifications Outside Diameter D
32.00 inches
Specifications Stud Bolt Length Raised Face
6.75 inches
Specifications Stud Bolt Length Ring Joint
7.25 inches
Specifications Thickness T
1.88 inches
