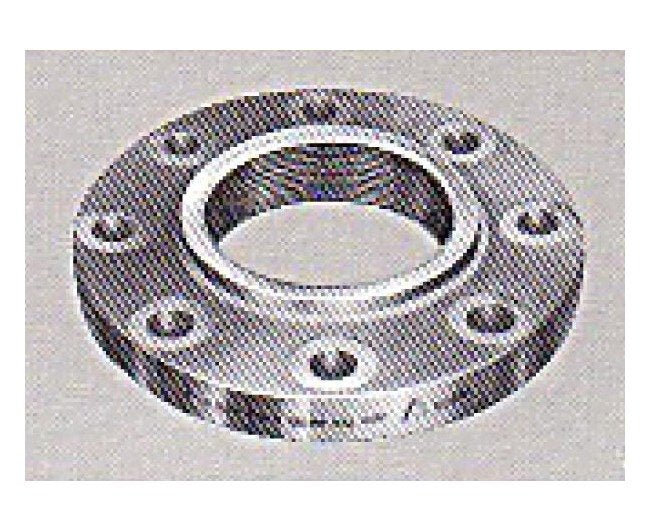

Forged Steel Class 150 Threaded Flange - 2 inches
Forged Steel Class 150 Threaded Flange - 2 inches
SKU:FIT-634b59
Premium Class 150 Threaded Flange - 2", ANSI B16.5 Compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Forged Steel Class 150 Threaded Flange - 2 inches
$39.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 150 Threaded Flange - 2 inches
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Steel Class 150 Threaded Flange, with a 2-inch Nominal Pipe Size and precise dimensions including 0.75 inches Thickness and 3.62 inches O.D. of Raised Face, offers exceptional durability and performance. Designed to meet stringent Class 150 flange standards and ANSI B16.5 regulations, this flange ensures secure connections and optimal sealing. With a versatile design suitable for various applications, the flange features accurate machining, 0.06" raised face, and parallel gasket surfaces, meeting the highest industry benchmarks for reliability and quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

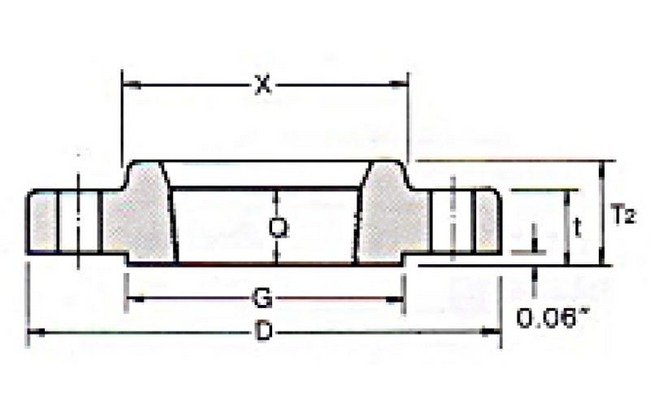

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
5.00 lbs
Specifications Bolt Circle Diameter
4.75 inches
Specifications Diameter At Base Of Hub X
3.06 inches
Specifications Diameter Of Bolts
5/8 inches
Specifications Diameter Of Holes
0.75 inches
Specifications Length Thru Hub T2
1.00 inches
Specifications Machine Bolt Length Raised Face
2.75 inches
Specifications Nominal Pipe Size
2 inches
Specifications Number Of Holes
4
Specifications Od Of Raised Face G
3.62 inches
Specifications Outside Diameter D
6.00 inches
Specifications Stud Bolt Length Raised Face
3.25 inches
Specifications Stud Bolt Length Ring Joint
3.75 inches
Specifications Thickness T
0.75 inches
Specifications Thread Length Q
1.00 inches
