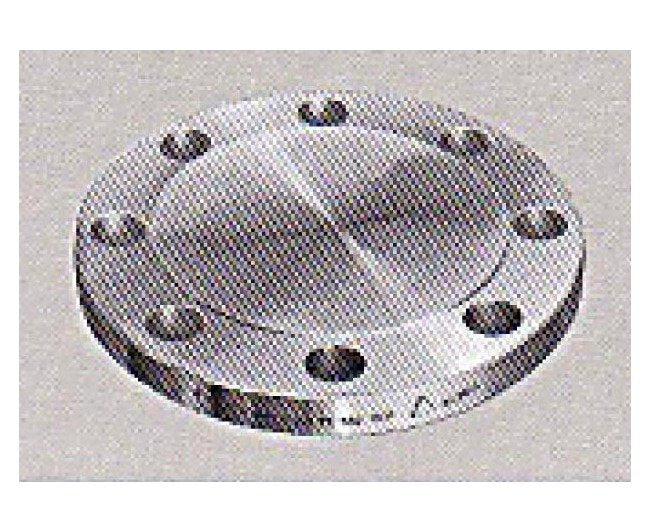

Forged Steel Class 300 Blind Flange - 20" Nominal Pipe Size
Forged Steel Class 300 Blind Flange - 20" Nominal Pipe Size
SKU:FIT-283b51
High-quality Forged Steel Class 300 Blind Flange for secure industrial connections. 20" Nominal Pipe Size.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Forged Steel Class 300 Blind Flange - 20" Nominal Pipe Size
$599.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 300 Blind Flange - 20" Nominal Pipe Size
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Steel Class 300 Blind Flange is a robust fitting designed for industrial applications, featuring a 20-inch Nominal Pipe Size and precise dimensions complying with Class 300 standards. With a 30.50-inch outside diameter, 2.50-inch thickness, and 492.00 lbs weight, this flange ensures secure sealing and structural integrity. Its 0.06" raised face meets industry specifications ensuring a leak-proof connection, making it ideal for critical systems in aerospace, defense, and energy sectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
492.00 lbs
Specifications Bolt Circle Diameter
27.00 inches
Specifications Diameter Of Bolts
1 1/4 inches
Specifications Diameter Of Holes
1.38 inches
Specifications Machine Bolt Length Raised Face
7.25 inches
Specifications Nominal Pipe Size
20 inches
Specifications Number Of Holes
24

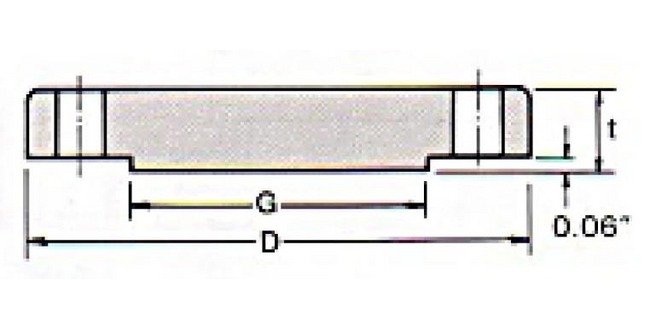

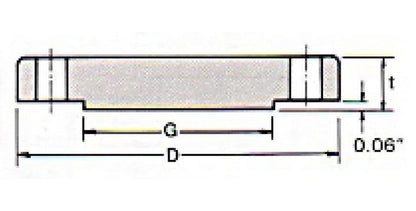

Specifications Od Of Raised Face G
23.00 inches
Specifications Outside Diameter D
30.50 inches
Specifications Stud Bolt Length Raised Face
8.00 inches
Specifications Stud Bolt Length Ring Joint
8.75 inches
Specifications Thickness T
2.50 inches
