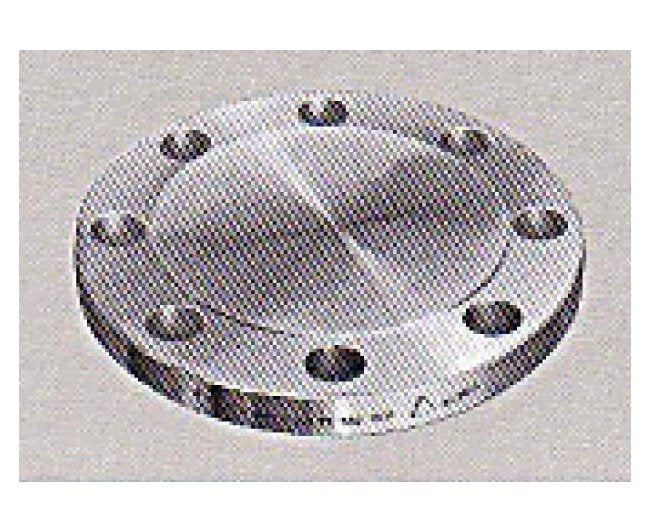

Forged Steel Class 300 Blind Flange - 3/4 inches

Name: Forged Steel Class 300 Blind Flange - 3/4 inches
Brand: Caylor Industrial Sales, Inc.
SKU: FIT-9bf459
Price: 59.99 USD
Availability: OutOfStock

SKU:FIT-9bf459

Precision-engineered Forged Steel Blind Flange for secure, leak-free connections in industrial settings. Compliant with ANSI B16.5 standards.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Forged Steel Class 300 Blind Flange is a robust fitting designed for industrial applications, featuring a 0.06" raised face and precise dimensions as per ANSI B16.5 standards. With a sturdy construction and parallel gasket surfaces, this blind flange ensures leak-free connections and easy installation, meeting stringent institutional procurement requirements.

Product Specifications

Features 0

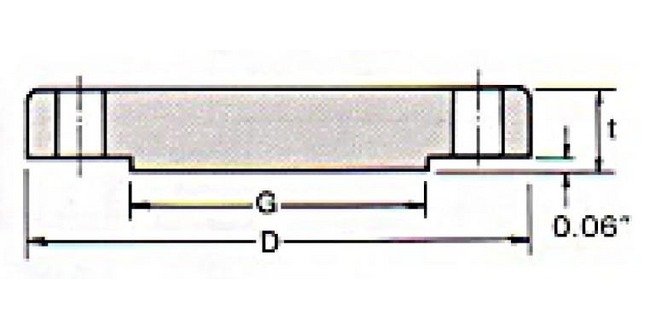

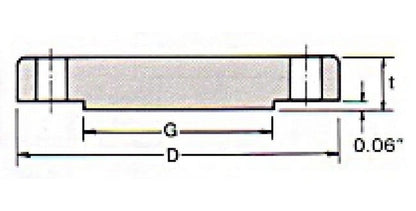

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.

Specifications Approx Weight

2.50 lbs

Specifications Bolt Circle Diameter

3.25 inches

Specifications Diameter Of Bolts

5/8 inches

Specifications Diameter Of Holes

0.75 inches

Specifications Machine Bolt Length Raised Face

2.50 inches

Specifications Nominal Pipe Size

3/4 inches

Specifications Number Of Holes

Specifications Od Of Raised Face G

1.69 inches

Specifications Outside Diameter D

4.62 inches

Specifications Stud Bolt Length Raised Face

3.00 inches

Specifications Stud Bolt Length Ring Joint

3.50 inches

Specifications Thickness T

0.62 inches

Forged Steel Class 300 Blind Flange - 3/4 inches
