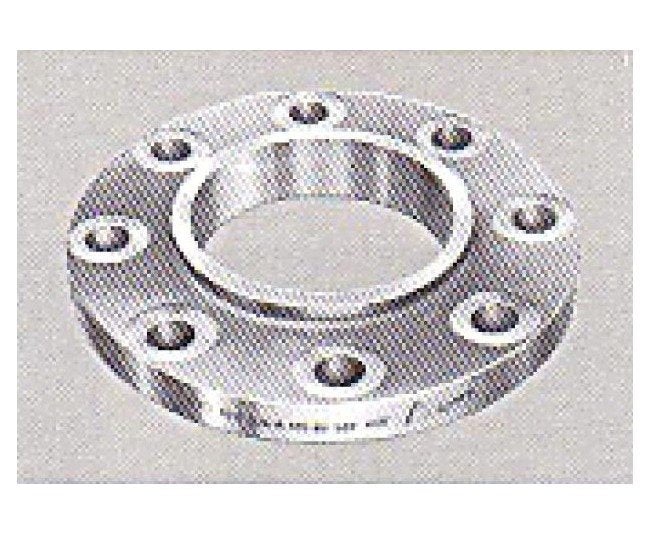

Forged Steel Class 300 Slip-On Flange - 4" Size
Forged Steel Class 300 Slip-On Flange - 4" Size
SKU:FIT-7de3f0
Premium Forged Steel Class 300 Slip-On Flange - 4" Size for secure, durable pipe connections in industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Forged Steel Class 300 Slip-On Flange - 4" Size
$49.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 300 Slip-On Flange - 4" Size
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Steel Class 300 Slip-On Flange in 4-inch size combines robust construction with precise engineering. With features like a raised face for secure sealing, tapered hubs for versatility, and parallel gasket surfaces meeting MSS SP-9 standards, this flange ensures reliable performance in industrial settings. Designed to ANSI B16.5 specifications, this slip-on flange offers durability and easy installation for pipelines and pressure vessels.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

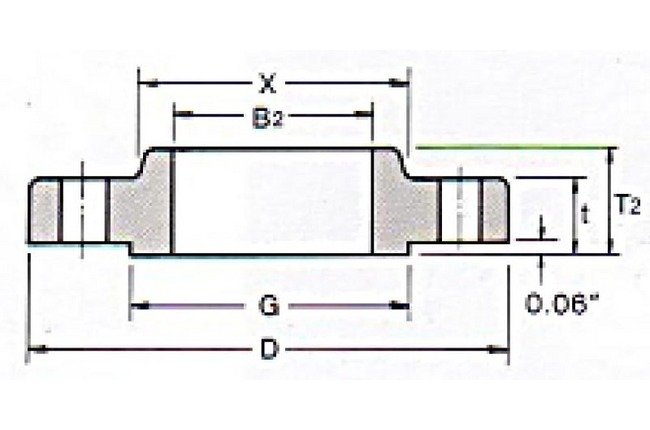

Class 300 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
22.30 lbs
Specifications Bolt Circle Diameter
7.88 inches
Specifications Bore B2
4.57 inches
Specifications Diameter At Base Of Hub X
5.75 inches
Specifications Diameter Of Bolts
3/4 inches
Specifications Diameter Of Holes
0.88 inches
Specifications Length Thru Hub T2
1.88 inches
Specifications Machine Bolt Length Raised Face
3.75 inches
Specifications Nominal Pipe Size
4 inches
Specifications Number Of Holes
8
Specifications Od Of Raised Face G
6.19 inches
Specifications Outside Diameter D
10.00 inches
Specifications Stud Bolt Length Raised Face
4.50 inches
Specifications Stud Bolt Length Ring Joint
5.00 inches
Specifications Thickness T
1.25 inches
