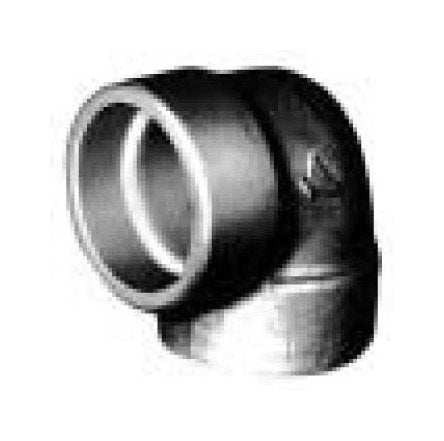

Forged Steel Class 3000 Socket-Weld 90-Degree Elbows
Forged Steel Class 3000 Socket-Weld 90-Degree Elbows
SKU:FIT-02621d
High-quality Forged Steel 90-Degree Elbows for Class 3000 Socket-Weld fittings. Precision-engineered for durability & leak-free connections.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Forged Steel Class 3000 Socket-Weld 90-Degree Elbows
$129.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 3000 Socket-Weld 90-Degree Elbows
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Forged Steel Class 3000 Socket-Weld 90-Degree Elbows are precision-engineered fittings designed for industrial applications. With a nominal size of 4 inches, socket diameter of 115-116 mm, and bore diameter of 101-104 mm, these elbows ensure secure and leak-free connections. Meeting rigorous ASTM standards for durability and performance, these elbows are ideal for high-pressure systems where safety and reliability are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Bore Diameter D
101 mm | 104 mm
Specifications Dimension A Nominal
67 mm
Specifications Dimension C Min
8 mm
Specifications Dn
100
Specifications Minimum Socket Depth J
19 mm
Specifications Nps
4
Specifications Socket Diameter B
115 mm | 116 mm
Specifications Weight100 Pieces
1075 kg
