Forged Steel Class 3000 Socket-Weld Couplings
Forged Steel Class 3000 Socket-Weld Couplings
SKU:FIT-c41d4b
Precision-engineered forged steel couplings for secure socket-weld connections, compliant with federal procurement standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Forged Steel Class 3000 Socket-Weld Couplings
$299.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 3000 Socket-Weld Couplings
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

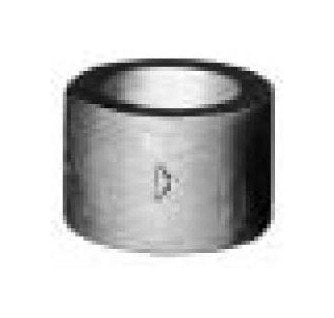

Our Forged Steel Class 3000 Socket-Weld Couplings are precision-engineered for durability and reliability. With a Nominal Pipe Size (NPS) of 2 and a bore diameter of 52-53 mm, these couplings ensure a secure and tight connection. The minimum socket depth of 16 mm and weight of 73 kg per 100 pieces make them ideal for heavy-duty industrial applications. Compliant with industry standards, these couplings are designed to meet the stringent requirements of federal procurement standards and GSA regulations.

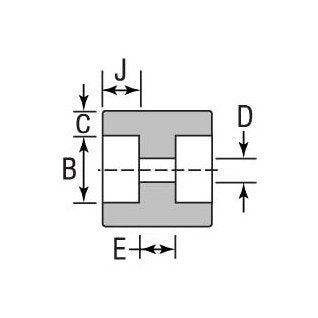

Product Specifications
Specifications Bore Diameter D
52 mm | 53 mm
Specifications Dimension C Min
6 mm
Specifications Dimension E
19.00 mm
Specifications Dn
50
Specifications Minimum Socket Depth J
16 mm
Specifications Nps
2
Specifications Socket Diameter B
61 mm | 62 mm
Specifications Weight100 Pieces
73 kg
