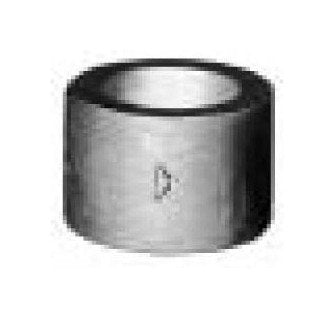

Forged Steel Class 3000 Socket-Weld Couplings
Forged Steel Class 3000 Socket-Weld Couplings
SKU:FIT-587ffe
High-quality Forged Steel Class 3000 Socket-Weld Couplings for secure, leak-free connections in high-pressure piping systems.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Forged Steel Class 3000 Socket-Weld Couplings
$99.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 3000 Socket-Weld Couplings
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Forged Steel Class 3000 Socket-Weld Couplings are designed to ensure secure and leak-free connections in high-pressure piping systems. With an NPS of 1/2 and a bore diameter of 15 mm, these couplings meet stringent industry standards for durability and performance. Featuring a minimum socket depth of 10 mm and a weight of 10 kg/100 pieces, these couplings are ideal for industrial applications where reliability is paramount.

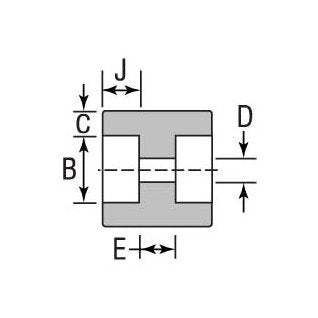

Product Specifications
Specifications Bore Diameter D
15 mm | 17 mm
Specifications Dimension C Min
4 mm
Specifications Dimension E
10.00 mm
Specifications Dn
15
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
1/2
Specifications Socket Diameter B
22 mm
Specifications Weight100 Pieces
10 kg
