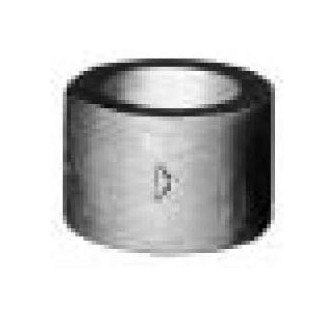

Forged Steel Class 3000 Socket-Weld Couplings
Forged Steel Class 3000 Socket-Weld Couplings
SKU:FIT-7064e1
Precision-engineered Forged Steel Class 3000 Socket-Weld Couplings for high-pressure applications. Ensure secure and efficient connections.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Forged Steel Class 3000 Socket-Weld Couplings
$129.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 3000 Socket-Weld Couplings
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

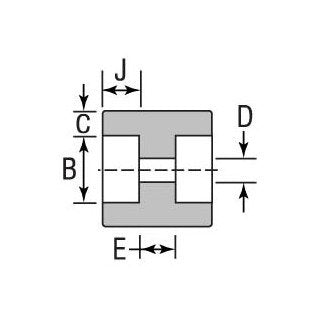

Our Forged Steel Class 3000 Socket-Weld Couplings are precision-engineered for durability and reliable performance. With NPS of 1/4 and DN of 8, these couplings feature a Socket Diameter - B of 14mm to 15mm, Dimension - C (Min.) of 3mm, Bore Diameter - D of 8mm to 10mm, and Minimum Socket Depth - J of 10mm. Meeting stringent industry standards, these couplings ensure secure connections and optimal flow control in high-pressure environments.
Product Specifications
Specifications Bore Diameter D
8 mm | 10 mm
Specifications Dimension C Min
3 mm
Specifications Dimension E
6.00 mm
Specifications Dn
8
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
1/4
Specifications Socket Diameter B
14 mm | 15 mm
Specifications Weight100 Pieces
5.4 kg
