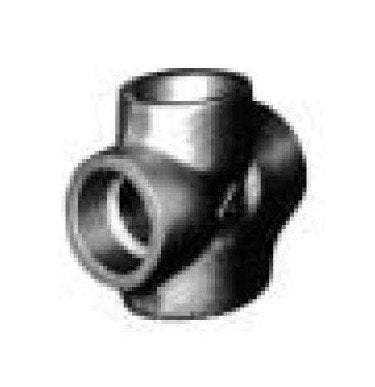

Forged Steel Class 3000 Socket-Weld Crosses - 1 1/4"
Forged Steel Class 3000 Socket-Weld Crosses - 1 1/4"
SKU:FIT-915480
Explore our Forged Steel Class 3000 Socket-Weld Crosses - ideal for high-pressure industrial piping applications. Durable, easy to install, and reliable performance.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Forged Steel Class 3000 Socket-Weld Crosses - 1 1/4"
$749.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 3000 Socket-Weld Crosses - 1 1/4"
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Forged Steel Class 3000 Socket-Weld Crosses, with a nominal pipe size of 1 1/4" and robust design, are ideal for industrial applications requiring high-pressure piping solutions. Crafted with precision to meet stringent durability standards, these crosses offer reliable performance and easy socket-weld installation. With a bore diameter of 34mm to 36mm and a weight of 97kg per 100 pieces, these fittings ensure superior functionality and long-lasting durability in demanding environments.

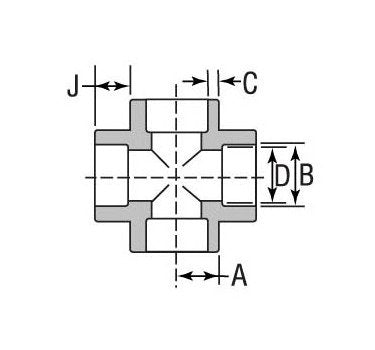

Product Specifications
Specifications Bore Diameter D
34 mm | 36 mm
Specifications Dimension A
27.00 mm
Specifications Dimension C Min
5 mm
Specifications Dn
32
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
1 1/4
Specifications Socket Diameter B
43 mm
Specifications Weight100 Pieces
97 kg
