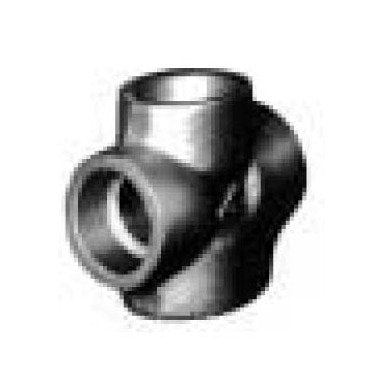

Forged Steel Class 3000 Socket-Weld Crosses, 1" NPS
Forged Steel Class 3000 Socket-Weld Crosses, 1" NPS
SKU:FIT-ec5da7
Premium Forged Steel Crosses for robust piping systems, offering 34mm Socket Diameter & 26/27mm Bore Diameter options for secure connections.
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
Forged Steel Class 3000 Socket-Weld Crosses, 1" NPS
$55.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 3000 Socket-Weld Crosses, 1" NPS
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your piping systems with our Forged Steel Class 3000 Socket-Weld Crosses designed for durability and precision. With a Socket Diameter of 34mm and Bore Diameter options of 26mm or 27mm, these crosses ensure secure connections and efficient flow. Meeting industry standards for strength and quality, these crosses are ideal for both consumer and institutional applications.

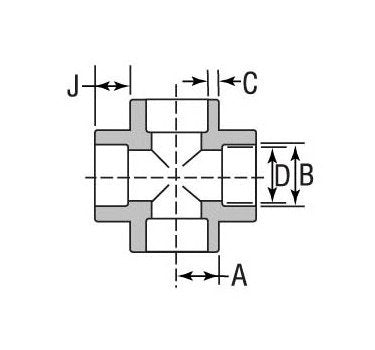

Product Specifications
Specifications Bore Diameter D
26 mm | 27 mm
Specifications Dimension A
22.00 mm
Specifications Dimension C Min
5 mm
Specifications Dn
25
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
1
Specifications Socket Diameter B
34 mm
Specifications Weight100 Pieces
65 kg
