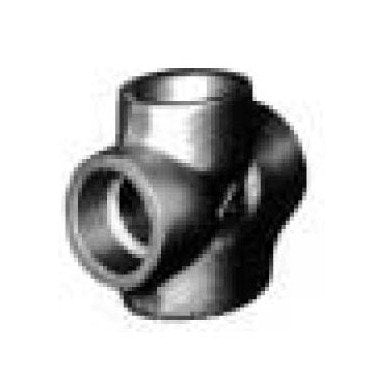

Forged Steel Class 3000 Socket-Weld Crosses - 2 1/2"
Forged Steel Class 3000 Socket-Weld Crosses - 2 1/2"
SKU:FIT-25d02d
Premium Forged Steel Class 3000 Socket-Weld Crosses, 2 1/2" size, for durable and secure pipe connections.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Forged Steel Class 3000 Socket-Weld Crosses - 2 1/2"
$349.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 3000 Socket-Weld Crosses - 2 1/2"
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Forged Steel Class 3000 Socket-Weld Crosses in 2 1/2" size are precision-engineered fittings designed for durability and seamless connection applications. With a Socket Diameter of 74mm, Bore Diameter ranging from 61mm to 64mm, and a Minimum Socket Depth of 16mm, these crosses ensure reliable performance in industrial settings. Meeting rigorous standards for strength and quality, these fittings are a dependable choice for plumbing and pipeline projects.
Product Specifications

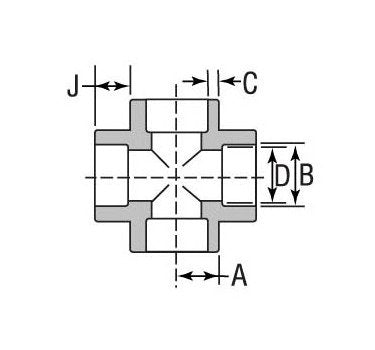

Specifications Bore Diameter D
61 mm | 64 mm
Specifications Dimension A
41.00 mm
Specifications Dimension C Min
8 mm
Specifications Dn
65
Specifications Minimum Socket Depth J
16 mm
Specifications Nps
2 1/2
Specifications Socket Diameter B
74 mm
Specifications Weight100 Pieces
403 kg
