Forged Steel Class 3000 Socket-Weld Hall Couplings - NPS 2
Forged Steel Class 3000 Socket-Weld Hall Couplings - NPS 2
SKU:FIT-753b80
Durable Class 3000 Socket-Weld Hall Couplings - NPS 2, precision-built for industrial reliability.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Forged Steel Class 3000 Socket-Weld Hall Couplings - NPS 2
$499.99
Quantity: 1
Claim Your Seller Account
Forged Steel Class 3000 Socket-Weld Hall Couplings - NPS 2
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Steel Class 3000 Socket-Weld Hall Couplings are precision engineered for durability and reliability in industrial applications. With a nominal pipe size (NPS) of 2, these couplings feature a robust construction to ensure leak-free connections. The Socket Diameter, Bore Diameter, and Minimum Socket Depth are meticulously designed to meet stringent industry standards for secure fittings. Weighing 99 kg per 100 pieces, these couplings offer exceptional strength and performance, making them ideal for high-pressure environments.
Product Specifications

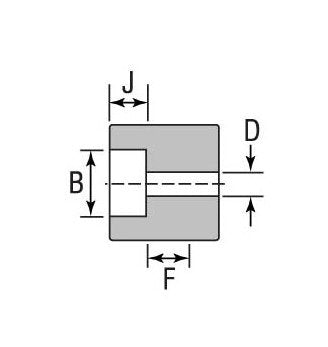

Specifications Bore Diameter D
52 mm | 53 mm
Specifications Dimension C Min
6 mm
Specifications Dimension F
41.00 mm
Specifications Dn
50
Specifications Minimum Socket Depth J
16 mm
Specifications Nps
2
Specifications Socket Diameter B
61 mm | 62 mm
Specifications Weight100 Pieces
99 kg
