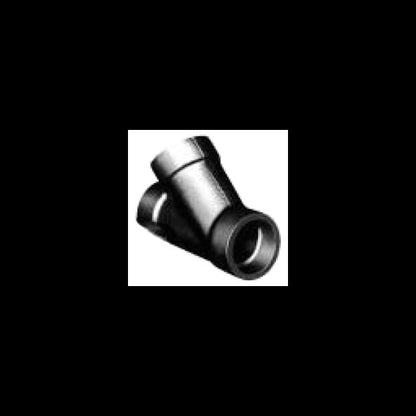

Forged Steel Class 3000 Socket-Weld Laterals - 1" NPS
Forged Steel Class 3000 Socket-Weld Laterals - 1" NPS
SKU:FIT-e04ee3
High-quality Forged Steel Class 3000 Socket-Weld Laterals for durable, high-pressure applications. Secure connections with 34mm socket diameter.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Our Forged Steel Class 3000 Socket-Weld Laterals, featuring 1" NPS, are precision-engineered fittings designed for durability and high-pressure applications. With a socket diameter of 34mm and bore diameter options of 26mm or 27mm, these laterals ensure secure connections and optimal flow. Meeting stringent industry standards, these laterals provide reliability and performance ideal for institutional and government procurement needs.

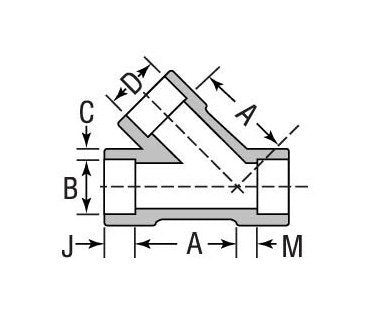

Product Specifications
Specifications Bore Diameter D
26 mm | 27 mm
Specifications Dimension A Nominal
60 mm
Specifications Dimension C Min
5 mm
Specifications Dimension M
13.00 mm
Specifications Dn
25
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
1
Specifications Socket Diameter B
34 mm
Specifications Weight100 Pieces
108 kg
