Forged Steel Crosses 3000 Class Socket-Weld, 2" NPS
Forged Steel Crosses 3000 Class Socket-Weld, 2" NPS
SKU:FIT-933af3
High-quality Forged Steel Crosses for Class 3000 Socket-Weld fittings, NPS 2, durable and precise dimensions.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Forged Steel Crosses 3000 Class Socket-Weld, 2" NPS
$199.99
Quantity: 1
Claim Your Seller Account
Forged Steel Crosses 3000 Class Socket-Weld, 2" NPS
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

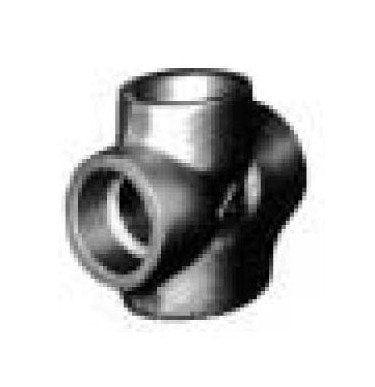

Our Forged Steel Crosses, designed for Class 3000 Socket-Weld applications, feature precise dimensions including NPS 2 and a Socket Diameter of 61mm | 62mm. With a Bore Diameter of 52mm | 53mm and a Minimum Socket Depth of 16mm, these crosses offer unparalleled strength and durability. Weighing 201 kg per 100 pieces, these fittings are engineered to meet and exceed industry standards, making them ideal for both consumer and institutional procurement needs.
Product Specifications

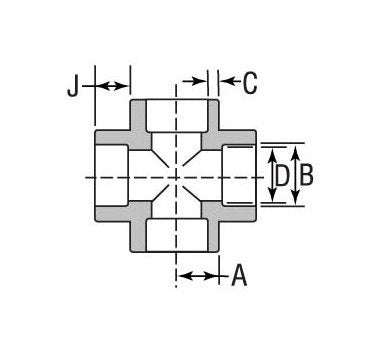

Specifications Bore Diameter D
52 mm | 53 mm
Specifications Dimension A
38.00 mm
Specifications Dimension C Min
6 mm
Specifications Dn
50
Specifications Minimum Socket Depth J
16 mm
Specifications Nps
2
Specifications Socket Diameter B
61 mm | 62 mm
Specifications Weight100 Pieces
201 kg
