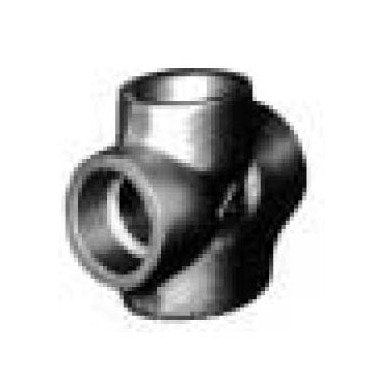

Forged Steel Crosses Class 3000 Socket-Weld, 1/4 NPS
Forged Steel Crosses Class 3000 Socket-Weld, 1/4 NPS
SKU:FIT-e5f057
Durable Forged Steel Crosses, Class 3000 Socket-Weld, 1/4 NPS
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
Forged Steel Crosses Class 3000 Socket-Weld, 1/4 NPS
$75.99
Quantity: 1
Claim Your Seller Account
Forged Steel Crosses Class 3000 Socket-Weld, 1/4 NPS
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched durability and strength with our Forged Steel Crosses Class 3000 Socket-Weld. Precision-engineered to withstand high-pressure environments, these crosses feature Socket Diameter of 14 mm or 15 mm, Dimension C (Min.) of 3 mm, Bore Diameter of 8 mm or 10 mm, and more. Compliant with Federal/DoD procurement standards, GSA requirements, FAR compliance factors, and industry-specific certifications.

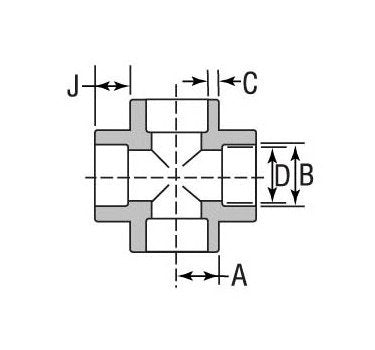

Product Specifications
Specifications Bore Diameter D
8 mm | 10 mm
Specifications Dimension A
11.00 mm
Specifications Dimension C Min
3 mm
Specifications Dn
8
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
1/4
Specifications Socket Diameter B
14 mm | 15 mm
Specifications Weight100 Pieces
11 kg
