Forged Steel Regular Nut Eye Bolt HDG - Import, 1/4 x 2

Name: Forged Steel Regular Nut Eye Bolt HDG - Import, 1/4 x 2
Brand: Lexco Cable Manufacturing
SKU: WIR-2a9213
Price: 45.99 USD
Availability: OutOfStock

SKU:WIR-2a9213

Premium Forged Steel Eye Bolt HDG, Ultimate Load 5x WLL, Attach Securely to Cable Assemblies

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

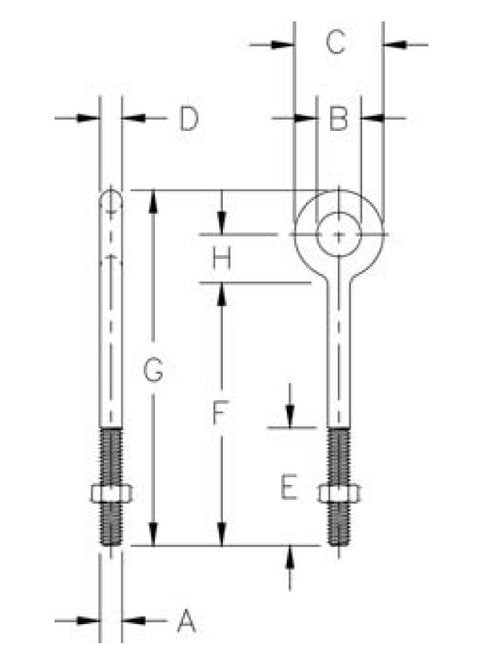

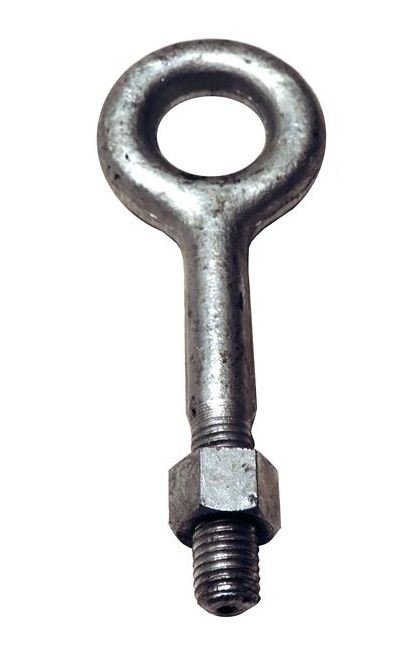

The Forged Steel Regular Nut Eye Bolt HDG - Import is hot dip galvanized and quenched and tempered for superior strength and longevity. With an ultimate load capacity of 5 times the working load limit, this eye bolt ensures reliable performance. Attach easily to cable assemblies for secure connections. Dimensions A-H: A - 0.25", B - 0.50", C - 1.00", D - 0.25", E - 1.50", F - 2.00", G - 3.06", H - 0.56".

Product Specifications

Specifications A

0.25

Specifications B

0.50

Specifications C

1.00

Specifications D

0.25

Specifications E

1.50

Specifications F

2.00

Specifications G

3.06

Specifications H

0.56

Specifications Shank Dia Length In

1/4 x 2

Specifications Wll Lbs

500

Specifications Wt100 Pcs Lbs

8.20

CAGE

0T9L4

NAICS

332722

PSC

5306

Forged Steel Regular Nut Eye Bolt HDG - Import, 1/4 x 2
