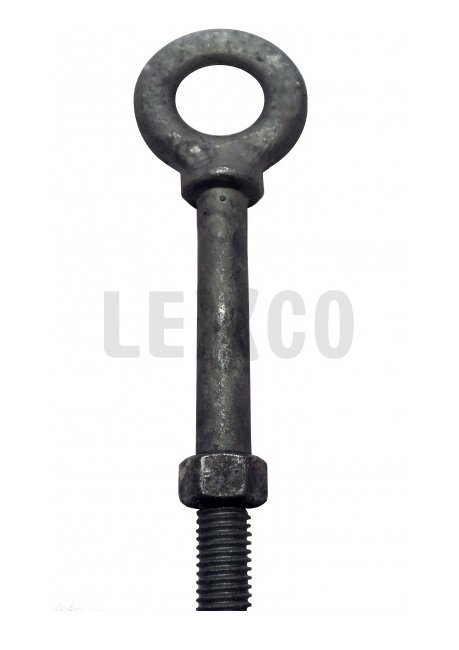

Forged Steel Shoulder Nut Eye Bolts HDG - Import 1" x 6"
Forged Steel Shoulder Nut Eye Bolts HDG - Import 1" x 6"
SKU:WIR-224852
Durable forged steel Shoulder Nut Eye Bolts HDG - Import, 1" x 6", with 10000 lbs WLL, hot dip galvanized for secure cable assembly attachment.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

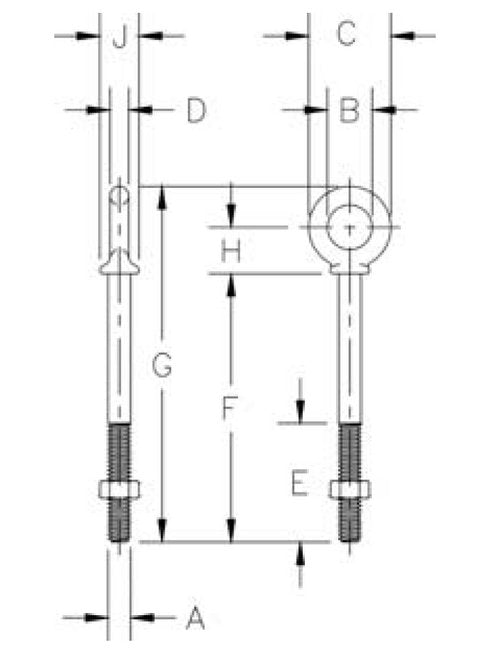

The Shoulder Nut Eye Bolts HDG - Import are constructed with hot dip galvanized forged steel, quenched and tempered for durability. With an ultimate load 5 times the working load limit of 10000 lbs, these eye bolts provide secure attachment to cable assemblies. Featuring precise dimensions (A-J) of 1" x 6", 1.00", 2.00", 3.75", 0.88", 3.00", 6.00", 9.97", 2.09", and 1.81" respectively, these bolts are designed for reliability in various applications.

Product Specifications
Specifications A
1.00
Specifications B
2.00
Specifications C
3.75
Specifications D
0.88
Specifications E
3.00
Specifications F
6.00
Specifications G
9.97
Specifications H
2.09
Specifications J
1.81
Specifications Shank Dia Length In
1 x 6
Specifications Wll Lbs
10000
Specifications Wt100 Pcs Lbs
366.30
CAGE
0T9L4
NAICS
332722
PSC
5306
