Forged Steel Shoulder Nut Eye Bolts HDG - Import, 3/8" x 4-1/2"

Name: Forged Steel Shoulder Nut Eye Bolts HDG - Import, 3/8" x 4-1/2"
Brand: Lexco Cable Manufacturing
SKU: WIR-4fb4fd
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-4fb4fd

Durable forged steel shoulder nut eye bolts for wire rope hardware. Hot dip galvanized with 1200 lbs WLL.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

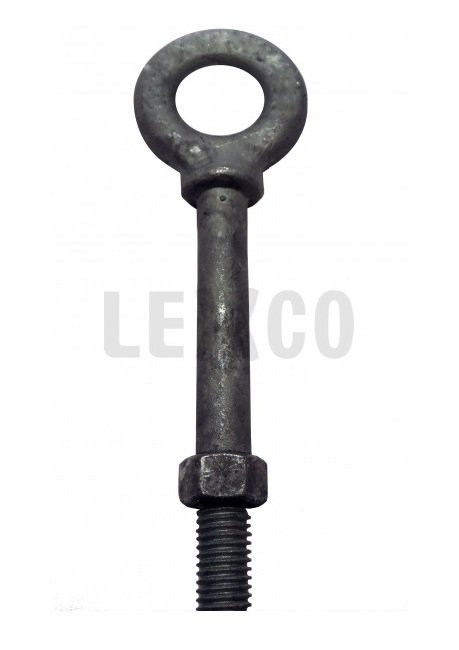

Enhance your wire rope assembly with these hot dip galvanized forged steel shoulder nut eye bolts. Designed for durability, these bolts are quenched and tempered, providing a superior ultimate load of 5 times the working load limit. With precise dimensions and a WLL of 1200 lbs, they ensure reliable performance for various applications in wire rope hardware.

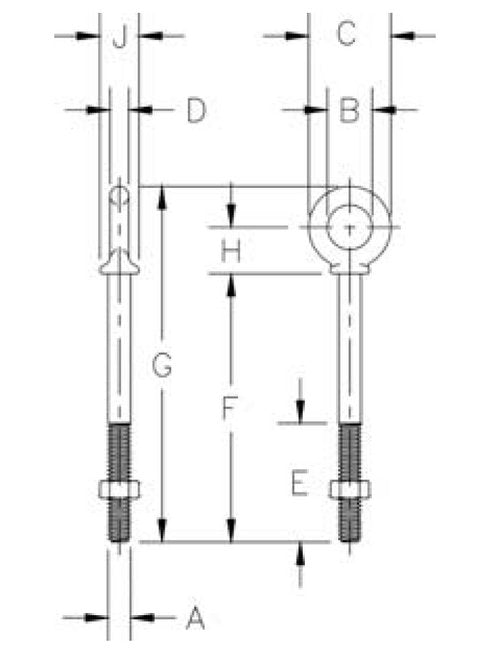

Product Specifications

Specifications A

0.38

Specifications B

0.75

Specifications C

1.50

Specifications D

0.31

Specifications E

2.50

Specifications F

4.50

Specifications G

5.97

Specifications H

0.78

Specifications J

0.66

Specifications Shank Dia Length In

3/8 x 4-1/2

Specifications Wll Lbs

1200

Specifications Wt100 Pcs Lbs

25.30

CAGE

0T9L4

NAICS

332722

PSC

5306
