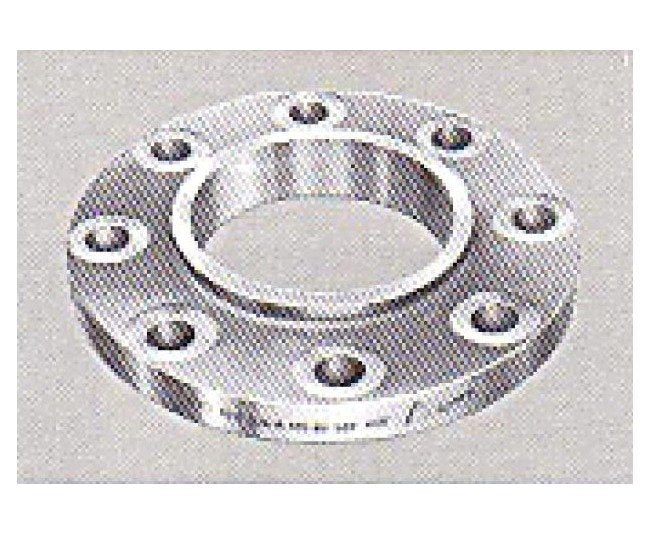

The Forged Steel Slip-On Class 150 Flange in 12 inches is a robust fitting designed to meet Class 150 flange standards. With precise specifications including an outside diameter of 19.00 inches, raised face of 15.00 inches, and bolt circle diameter of 17.00 inches, this slip-on flange ensures secure connections and reliable performance. Suitable for various applications, it features hubs that can be shaped vertically or tapered within 7 degrees, ensuring versatility and easy installation. Conforming to industry requirements, this slip-on flange is a dependable choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

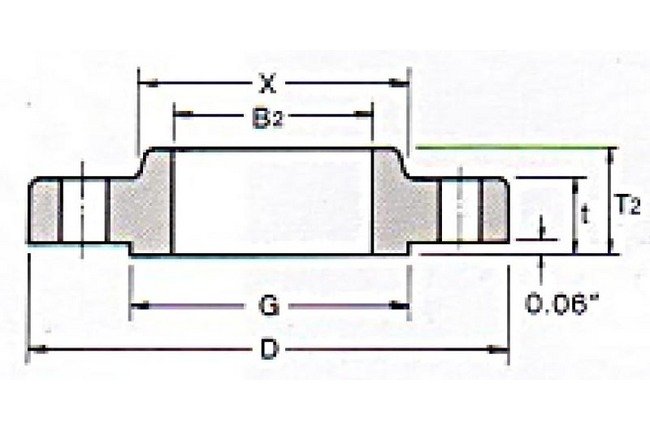

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
61.00 lbs
Specifications Bolt Circle Diameter
17.00 inches
Specifications Bore B2
12.88 inches
Specifications Diameter At Base Of Hub X
14.38 inches
Specifications Diameter Of Bolts
7/8 inches
Specifications Diameter Of Holes
1.00 inches
Specifications Length Thru Hub T2
2.19 inches
Specifications Machine Bolt Length Raised Face
4.00 inches
Specifications Nominal Pipe Size
12 inches
Specifications Number Of Holes
12
Specifications Od Of Raised Face G
15.00 inches
Specifications Outside Diameter D
19.00 inches
Specifications Stud Bolt Length Raised Face
4.75 inches
Specifications Stud Bolt Length Ring Joint
5.25 inches
Specifications Thickness T
1.25 inches
