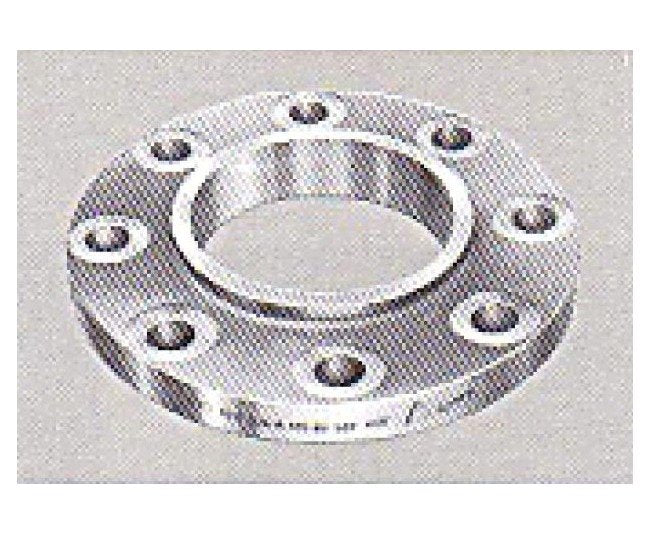

Forged Steel Slip-On Flange - 14 inches, Class 150
Forged Steel Slip-On Flange - 14 inches, Class 150
SKU:FIT-5eb4ed
Enhance your piping system with our 14" Class 150 Slip-On Flange - durable, precise, and easy to install for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Forged Steel Slip-On Flange - 14 inches, Class 150
$129.99
Quantity: 1
Claim Your Seller Account
Forged Steel Slip-On Flange - 14 inches, Class 150
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your piping system with our Forged Steel Slip-On Flange designed for 14-inch pipes. Crafted for durability, our flange features precise measurements, a raised face for secure sealing, and a robust construction that meets Class 150 standards. Offering versatility in hub shaping, easy installation, and reliable performance, this Slip-On Flange is ideal for various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

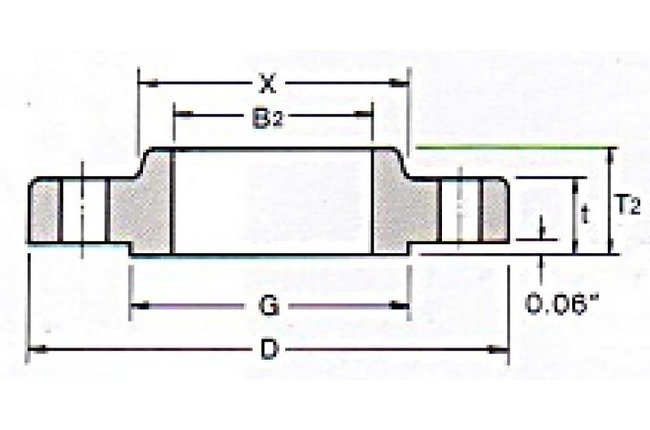

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
77.60 lbs
Specifications Bolt Circle Diameter
18.75 inches
Specifications Bore B2
14.14 inches
Specifications Diameter At Base Of Hub X
15.75 inches
Specifications Diameter Of Bolts
1 inches
Specifications Diameter Of Holes
1.12 inches
Specifications Length Thru Hub T2
2.25 inches
Specifications Machine Bolt Length Raised Face
4.50 inches
Specifications Nominal Pipe Size
14 inches
Specifications Number Of Holes
12
Specifications Od Of Raised Face G
16.25 inches
Specifications Outside Diameter D
21.00 inches
Specifications Stud Bolt Length Raised Face
5.25 inches
Specifications Stud Bolt Length Ring Joint
5.75 inches
Specifications Thickness T
1.38 inches
