Forged Steel Socket-Weld Lateral Fittings - Class 3000
Forged Steel Socket-Weld Lateral Fittings - Class 3000
SKU:FIT-9e8c39
Discover durability and precision with Class 3000 Forged Steel Socket-Weld Lateral Fittings for seamless integration into your piping system.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Forged Steel Socket-Weld Lateral Fittings - Class 3000
$499.99
Quantity: 1
Claim Your Seller Account
Forged Steel Socket-Weld Lateral Fittings - Class 3000
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

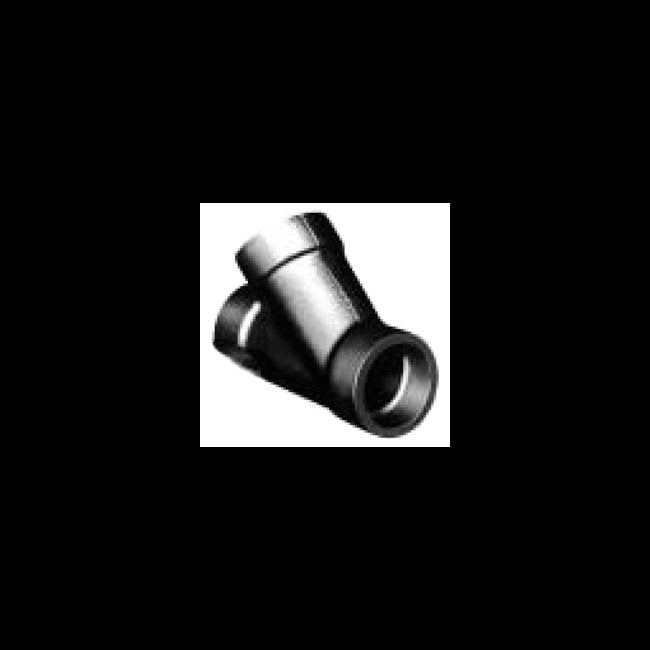

Enhance your piping system with precision-crafted Forged Steel Socket-Weld Lateral Fittings. These Class 3000 fittings feature a nominal size of 1 1/4 NPS with a sturdy socket diameter of 43mm. The bore diameter options of 34mm and 36mm ensure versatility, while meeting stringent dimensional standards for seamless integration. With a minimum socket depth of 13mm and a weight of 170 kg per 100 pieces, these Laterals guarantee durability and reliability in demanding industrial applications.
Ready to Grow Without Cash Flow Constraints?

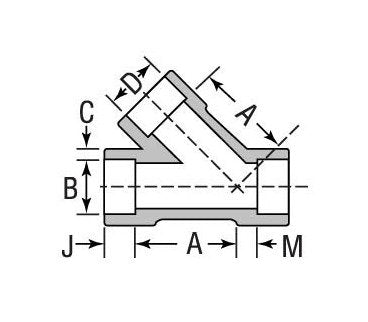

Product Specifications
Specifications Bore Diameter D
34 mm | 36 mm
Specifications Dimension A Nominal
71 mm
Specifications Dimension C Min
5 mm
Specifications Dimension M
15.00 mm
Specifications Dn
32
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
1 1/4
Specifications Socket Diameter B
43 mm
Specifications Weight100 Pieces
170 kg
