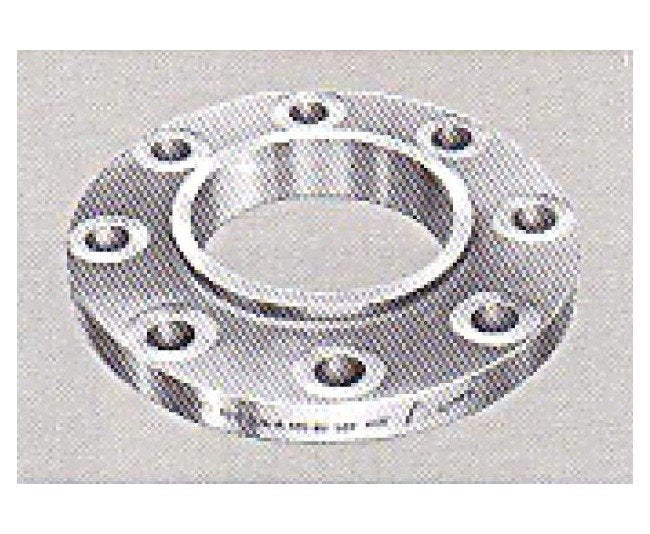

The ForgeFit Class 150 Slip-On Flange is designed for precise industrial applications, featuring a 3 1/2 inches Nominal Pipe Size with an 8.50 inches Outer Diameter. Meeting Class 150 standards, it offers a sturdy 0.94 inches Thickness and comes with 8 holes of 0.75 inches diameter each. This flange combines robust construction, easy installation, and precise dimensions that adhere to institutional procurement requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

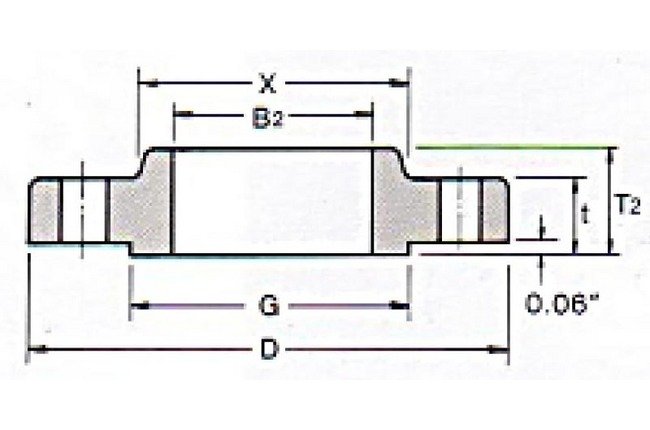

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
11.00 lbs
Specifications Bolt Circle Diameter
7.00 inches
Specifications Bore B2
4.07 inches
Specifications Diameter At Base Of Hub X
4.81 inches
Specifications Diameter Of Bolts
5/8 inches
Specifications Diameter Of Holes
0.75 inches
Specifications Length Thru Hub T2
1.25 inches
Specifications Machine Bolt Length Raised Face
3.00 inches
Specifications Nominal Pipe Size
3 1/2 inches
Specifications Number Of Holes
8
Specifications Od Of Raised Face G
5.50 inches
Specifications Outside Diameter D
8.50 inches
Specifications Stud Bolt Length Raised Face
3.50 inches
Specifications Stud Bolt Length Ring Joint
4.00 inches
Specifications Thickness T
0.94 inches
