Form Roll 1 Inch Full Face Straight Line Knurl
Form Roll 1 Inch Full Face Straight Line Knurl
SKU:KNU-ba9c55
Enhance knurling precision with the Form Roll 1 Inch Full Face Straight Line Knurl, crafted from High-Speed Steel (HSS) for durability and performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Form Roll 1 Inch Full Face Straight Line Knurl
$29.99
Quantity: 1
Claim Your Seller Account
Form Roll 1 Inch Full Face Straight Line Knurl
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

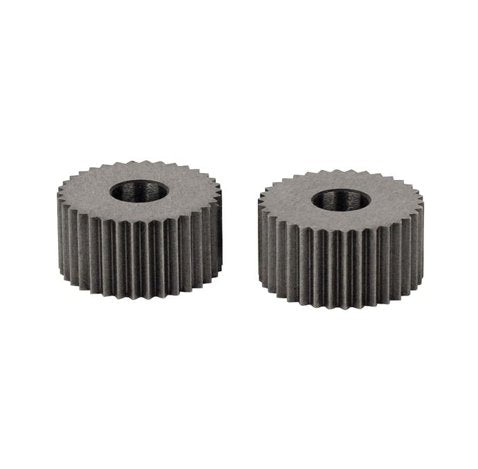

The Form Roll 1 Inch Full Face Straight Line Knurl is a precision-engineered tool designed to deliver exceptional knurling performance. Made in the U.S.A. by Form Roll, this knurl features a 1-inch diameter, 21 pitch full face straight line pattern, and is crafted from High-Speed Steel (HSS) for durability and longevity. With a hardness of 58 to 60 RC, a 1/4-inch width, and a 3/8-inch full face width, this knurl ensures precise and efficient knurling operations. It comes with a 5/16-inch hole diameter and measures 3/8 inch in thickness, making it suitable for a wide range of applications. Enhance your knurling tasks with the reliability and performance of the Form Roll 1 Inch Full Face Straight Line Knurl.
Product Specifications
Technical Specs Brands
Form Roll
Technical Specs Diameter
1 in
Technical Specs Full Face Width
3/8 in
Technical Specs Hardness
58 to 60 RC
Technical Specs Hole Diameter
5/16 in

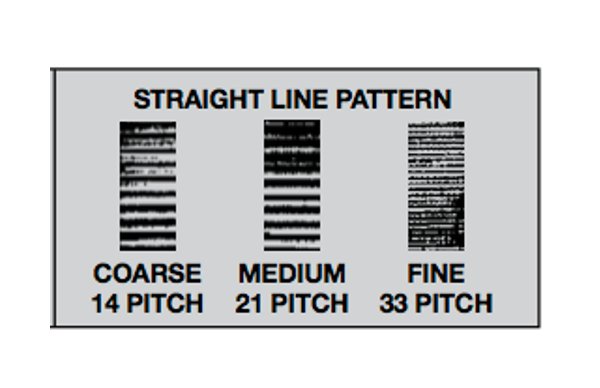

Technical Specs Pitch
21 tpi
Technical Specs Style
Straight Line
Technical Specs Thickness
3/8 in
Technical Specs Tool Material
High Speed Steel (HSS)
Technical Specs Tooth Pattern
Full Face
Technical Specs Width
1/4 in
