Form Roll 3/4
Form Roll 3/4
SKU:KNU-6e20f5
Form Roll 3/4 Inch (in) Diameter and 21 Pitch Full Face Diamond Pattern High Speed Steel Knurl - Quick overview.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Form Roll 3/4
$49.99
Quantity: 1
Claim Your Seller Account
Form Roll 3/4
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

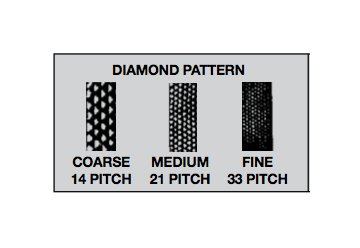

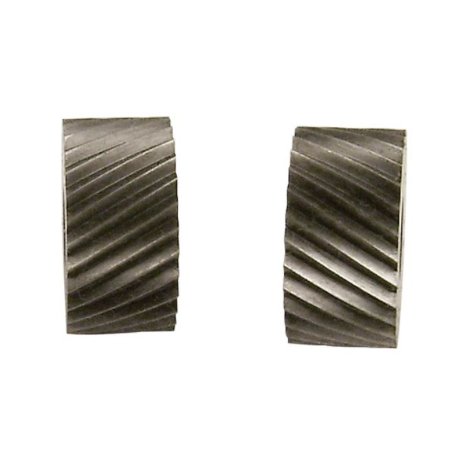

Knurls are furnished in pairs to fit all standard makes of knurling tools.Available in diamond or straight line pattern, either standard face with beveled edge complete or full face.The diamond pattern is a pair of right and left handed knurls when used together achieve the diamond pattern.Made in the U.S.A.
Product Specifications
Technical Specs Brands
Form Roll
Technical Specs Diameter
3/4 in
Technical Specs Full Face Width
3/8 in
Technical Specs Hardness
58 to 60 RC
Technical Specs Hole Diameter
1/4 in
Technical Specs Pitch
21 tpi
Technical Specs Style
Diamond Pattern
Technical Specs Thickness
3/8 in
Technical Specs Tool Material
High Speed Steel (HSS)
Technical Specs Tooth Pattern
Full Face
Technical Specs Width
1/4 in
