Form Roll GK Series 5/8” Diamond Female Knurl, High Speed Steel
Form Roll GK Series 5/8” Diamond Female Knurl, High Speed Steel
SKU:KNU-ac84b8
Precision-engineered 5/8” Diamond Female Knurl for high-speed steel applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Form Roll GK Series 5/8” Diamond Female Knurl, High Speed Steel
$29.99
Quantity: 1
Claim Your Seller Account
Form Roll GK Series 5/8” Diamond Female Knurl, High Speed Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

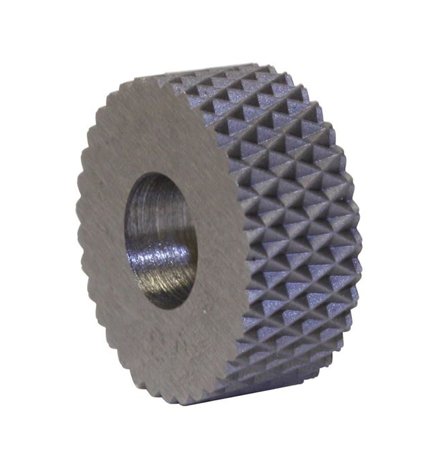

The Form Roll GK Series 5/8” Diamond Female High Speed Steel Knurl is a premium tool designed for precision knurling applications. Made in the U.S.A., this knurl features a 25 pitch circular pattern with a lapped tooth finish for exceptional hardness of 58 to 60 RC. With a 1/4” width and a 30° tooth angle, it ensures accurate and durable performance, meeting stringent industry standards for quality and reliability.
Product Specifications
Technical Specs Brands
Form Roll
Technical Specs Diameter
5/8 in
Technical Specs Finish Coating
Lapped Tooth Finish
Technical Specs Hardness
58 to 60 RC
Technical Specs Hole Diameter
1/4 in
Technical Specs Pitch
25 tpi
Technical Specs Series
GK
Technical Specs Style
Circular Pitch
Technical Specs Tool Material
High Speed Steel (HSS)
Technical Specs Tooth Angle
30 º
Technical Specs Tooth Pattern
Diamond Female
Technical Specs Width
1/4 in
