Form Roll KN Series High Speed Steel Knurl 3/4in Diameter, 20 Pitch Spiral Left Hand
Form Roll KN Series High Speed Steel Knurl 3/4in Diameter, 20 Pitch Spiral Left Hand
SKU:KNU-8661d3
Precision-made Form Roll KN Series high-speed steel knurl for accurate and efficient knurling applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Form Roll KN Series High Speed Steel Knurl 3/4in Diameter, 20 Pitch Spiral Left Hand
$24.99
Quantity: 1
Claim Your Seller Account
Form Roll KN Series High Speed Steel Knurl 3/4in Diameter, 20 Pitch Spiral Left Hand
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

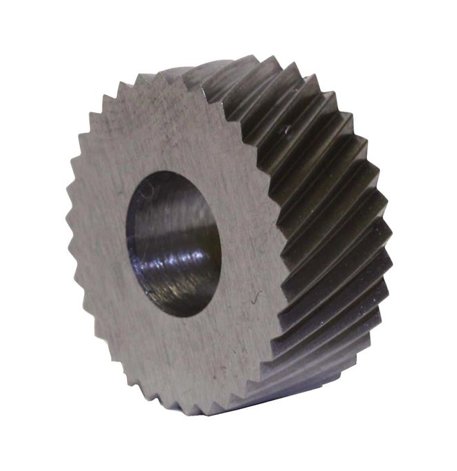

The Form Roll KN Series High Speed Steel Knurl features a 3/4 inch diameter and 20 pitch spiral left-hand tooth pattern ideal for precision knurling applications. Made in the USA, this knurl boasts a circular pitch design, high-speed steel construction with a hardness of 58-60 RC, lapped tooth finish, 3/8 inch width, and 1/4 inch hole diameter. With a tooth angle of 30 degrees, it ensures efficient and accurate knurling for various workpieces, meeting stringent industrial procurement standards.
Product Specifications
Technical Specs Brands
Form Roll
Technical Specs Diameter
3/4 in
Technical Specs Finish Coating
Lapped Tooth Finish
Technical Specs Hardness
58 to 60 RC
Technical Specs Hole Diameter
1/4 in
Technical Specs Pitch
20 tpi
Technical Specs Series
KN
Technical Specs Style
Circular Pitch
Technical Specs Tool Material
High Speed Steel (HSS)
Technical Specs Tooth Angle
30 º
Technical Specs Tooth Pattern
Spiral Left Hand
Technical Specs Width
3/8 in
