Form Roll KN Series High Speed Steel Knurl - 3/4in Diameter, 30 Pitch, Diamond Female
Form Roll KN Series High Speed Steel Knurl - 3/4in Diameter, 30 Pitch, Diamond Female
SKU:KNU-5c5765
Precision-crafted Form Roll KN Series High Speed Steel Knurl for durable, high-performance machining. Made in the U.S.A.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Form Roll KN Series High Speed Steel Knurl - 3/4in Diameter, 30 Pitch, Diamond Female
$24.99
Quantity: 1
Claim Your Seller Account
Form Roll KN Series High Speed Steel Knurl - 3/4in Diameter, 30 Pitch, Diamond Female
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

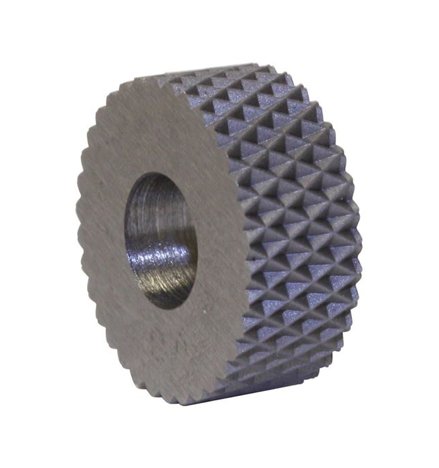

The Form Roll KN Series High Speed Steel Knurl is precision-crafted in the U.S.A. with a 3/4-inch diameter and 30 pitch diamond female design. Crafted from High-Speed Steel (HSS) with a hardness of 58 to 60 RC, this knurl features a lapped tooth finish for durability and performance. With a circular pitch style and a 3/8-inch width, this knurl meets stringent industry standards for reliability and precision in machining applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Form Roll
Technical Specs Diameter
3/4 in
Technical Specs Finish Coating
Lapped Tooth Finish
Technical Specs Hardness
58 to 60 RC
Technical Specs Hole Diameter
1/4 in
Technical Specs Pitch
30 tpi
Technical Specs Series
KN
Technical Specs Style
Circular Pitch
Technical Specs Tool Material
High Speed Steel (HSS)
Technical Specs Tooth Angle
30 º
Technical Specs Tooth Pattern
Diamond Female
Technical Specs Width
3/8 in
