Form Roll KP Series High Speed Steel Knurl - 3/4 Inch Diameter
Form Roll KP Series High Speed Steel Knurl - 3/4 Inch Diameter
SKU:KNU-781a70
Achieve precision knurling with the Form Roll KP Series High Speed Steel Knurl - 3/4 Inch Diameter, featuring a diamond male tooth pattern and lapped tooth finish.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Form Roll KP Series High Speed Steel Knurl - 3/4 Inch Diameter
$24.99
Quantity: 1
Claim Your Seller Account
Form Roll KP Series High Speed Steel Knurl - 3/4 Inch Diameter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Form Roll KP Series High Speed Steel Knurl features a 3/4 inch diameter with a 50 pitch diamond male tooth pattern, ideal for precision knurling applications. Made in the U.S.A., this knurl boasts a hardness of 58 to 60 RC, lapped tooth finish, and a tooth angle of 30 degrees. With a circular pitch style and 3/8 inch width, it ensures optimal performance and durability in machining operations, meeting stringent industry standards.
Product Specifications
Technical Specs Brands
Form Roll
Technical Specs Diameter
3/4 in
Technical Specs Finish Coating
Lapped Tooth Finish
Technical Specs Hardness
58 to 60 RC
Technical Specs Hole Diameter
1/4 in
Technical Specs Pitch
50 tpi
Technical Specs Series
KP

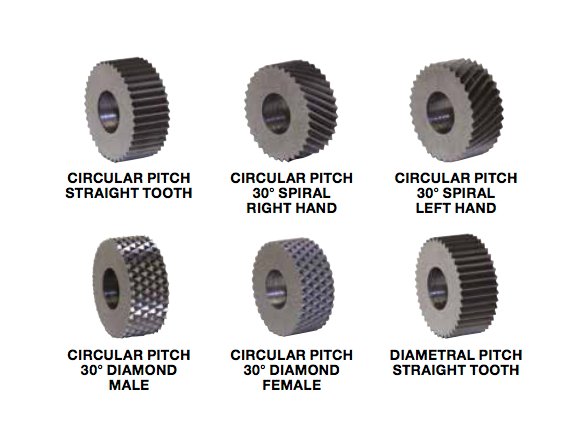

Technical Specs Style
Circular Pitch
Technical Specs Tool Material
High Speed Steel (HSS)
Technical Specs Tooth Angle
30 º
Technical Specs Tooth Pattern
Diamond Male
Technical Specs Width
3/8 in
