Four Feet Laminar Airflow Cabinet with ESD PVC Door
Four Feet Laminar Airflow Cabinet with ESD PVC Door
SKU:TWO-57611d
Enhance airflow and ESD protection with the Four Feet Laminar Airflow Cabinet featuring ESD PVC door, sturdy construction, and customizable options.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Four Feet Laminar Airflow Cabinet with ESD PVC Door
$2,999.99
Quantity: 1
Claim Your Seller Account
Four Feet Laminar Airflow Cabinet with ESD PVC Door
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

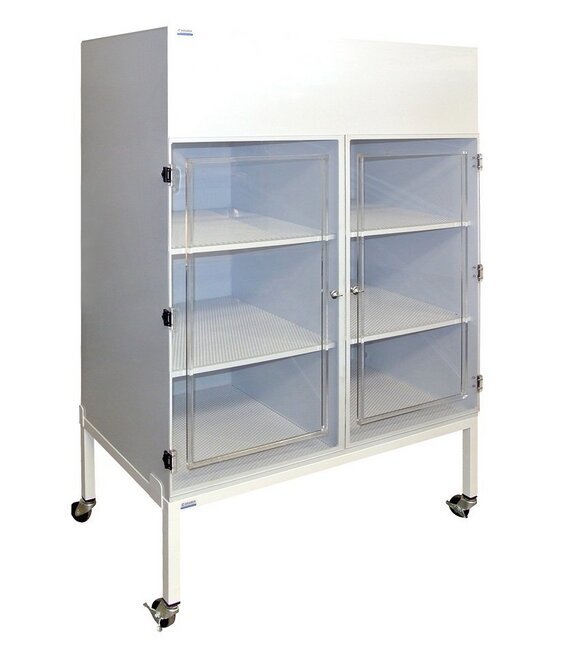

The Four Feet Laminar Airflow Cabinet with Electrostatic Discharge (ESD) Polyvinyl Chloride (PVC) Material Door is specifically designed for high-performance airflow and ESD protection. Constructed with durable 3/8" thick white polypropylene, this cabinet features four removable shelves with perforated holes for optimal air distribution. The cabinet stands at 70 inches in height on a 12" epoxy powder-coated steel stand with leveling mount feet, ensuring stability. With a high speed air flow of 580 ft³/min and average air velocity of 90 ft/min, this cabinet provides a vertical air flow direction and offers various customization options such as caster wheels, door material choices, and filter upgrades to meet specific needs.
Product Specifications
Additional Information Additional Information
The integrated fan filter module meets IEST recommended practices in terms of low sound and energy consumption. At 90 FPM, 30" from the filter face, the sound level is measured at 50 dBA. At its highest speed, the moduleâs energy consumption is 340 watts.High-efficiency particulate air (HEPA) filters are 99.99% efficient at removing 0.3µm or larger particles. Filters can be upgraded to ultra-low particulate air (ULPA) filters that are 99.999% efficient at removing 0.12µm or larger particles.
Options Options
Casters for enhanced mobility including two of four casters with brakes.Door Material Options: Clear Acrylic, UV Amber Acrylic, & Static-Dissipative PVCFilter upgrade to ultra-low particulate air (ULPA) filters that are 99.999% efficient at removing 0.12µm or larger particles.Magnehelic Gauge (0-1" Water Column). The gauge monitors pressure differential and when it exceeds the limit, the filter needs to be replaced.
Specifications Air Flow Direction
Vertical
Specifications Average Air Velocity
90 ft/min
Specifications High Speed Air Flow
580 ft³/min
Specifications Material
Polypropylene
Specifications Material Thickness
3/8 in
Specifications Overall Depth
26.5 in
Specifications Overall Height
70 in
Specifications Overall Width
49 in
Specifications Style
Cabinet with Stand
Specifications Width
4 ft
Specifications Work Surface Space Depth
24 in
Specifications Work Surface Space Height
13.5 in
Specifications Work Surface Space Width
24 in
