FP24-1000 PC Mount Flat Pack Power Transformer
FP24-1000 PC Mount Flat Pack Power Transformer
SKU:POW-41d07f
Reliable and efficient FP24-1000 PC Mount Power Transformer with 24 V·A rating. UL recognized materials, RoHS compliant, and industry standards met.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
FP24-1000 PC Mount Flat Pack Power Transformer
$39.99
Quantity: 1
Claim Your Seller Account
FP24-1000 PC Mount Flat Pack Power Transformer
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FP24-1000 PC Mount Flat Pack Power Transformer is a reliable and durable solution, designed for long-lasting performance in various applications. With an electrical rating of 24 V·A and voltage options suitable for series and parallel configurations, this transformer offers flexibility and efficiency. Constructed with UL recognized materials and undergoing rigorous testing for dielectric strength, this transformer ensures safe and consistent operation. RoHS compliant and meeting industry standards, it is a trusted choice for both consumer and institutional buyers.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

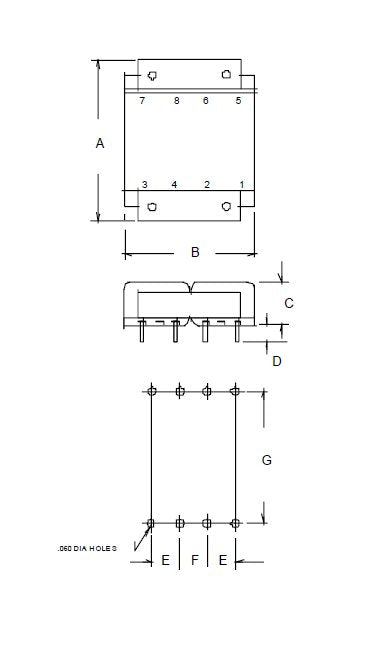

Specifications Dimension A
2.87 in
Specifications Dimension B
2.25 in
Specifications Dimension C
1.375 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.600 in
Specifications Dimension F
0.531 in
Specifications Dimension G
1.90 in
Specifications Dimension H
1.375 in
Specifications Dimension L
2.756 in
Specifications Dimension W
2.25 in
Specifications Electrical Rating
24 V·A
Specifications Mounting Length
2.44 in
Specifications Mounting Width
1.1 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
12.0 V at 2.0 A
Specifications Voltage In Series
24.0 V CT at 1.0 A
Specifications Weight
15.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
