FP24-250 PC Mount Power Transformer
FP24-250 PC Mount Power Transformer
SKU:POW-272699
Reliable FP24-250 PC Mount Power Transformer with 6.0 V·A rating, multiple voltage options, UL recognized materials, and RoHS compliance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
FP24-250 PC Mount Power Transformer
$39.99
Quantity: 1
Claim Your Seller Account
FP24-250 PC Mount Power Transformer
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

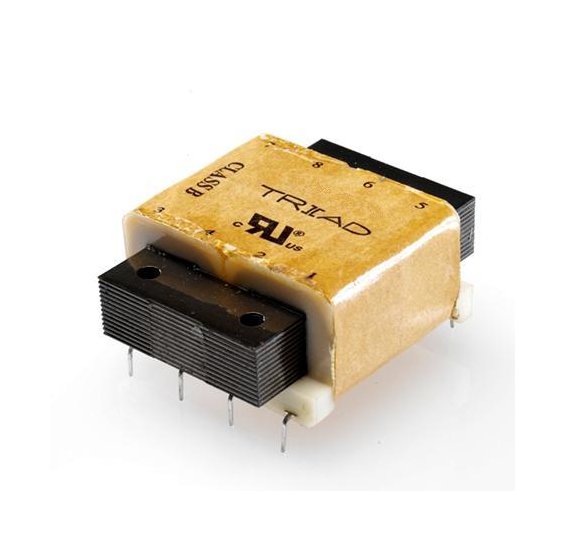

The FP24-250 PC Mount Flat Pack™ Power Transformer is a reliable solution for various power applications. With an electrical rating of 6.0 V·A and versatile voltage options, including 30.0 V CT at 0.2 A in series and 15.0 V at 0.4 A in parallel, this transformer ensures efficient power distribution. Its construction using UL recognized materials and Class B rated components guarantees safety and durability. The product is RoHS compliant, meeting the latest environmental standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

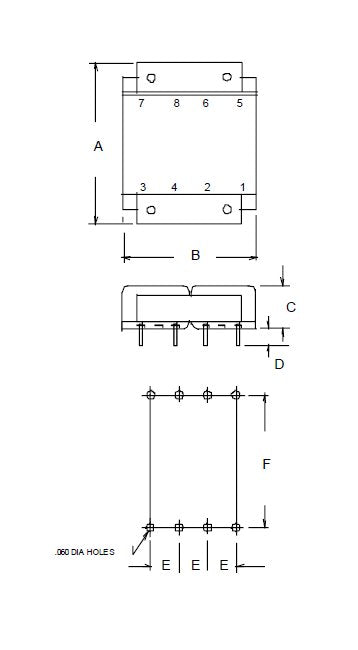

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.875 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.875 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
6.0 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
15.0 V at 0.4 A
Specifications Voltage In Series
30.0 V CT at 0.2 A
Specifications Weight
7.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
