Front Panel Mount High Voltage Sealed Receptacle, Series 730/830

Front Panel Mount High Voltage Sealed Receptacle, Series 730/830

HIG-d00ae8

Series 730/830 High Voltage Sealed Receptacle for demanding applications, with a 15 kVDC voltage rating and durable ceramic insulator material.

$59.99
$59.99
Sale

Initiate Order

Front Panel Mount High Voltage Sealed Receptacle, Series 730/830

Front Panel Mount High Voltage Sealed Receptacle, Series 730/830

$59.99

Quantity: 1

Claim Your Seller Account

Front Panel Mount High Voltage Sealed Receptacle, Series 730/830

Front Panel Mount High Voltage Sealed Receptacle, Series 730/830

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Front Panel Mount High Voltage Sealed Receptacle from Series 730/830 is a top-of-the-line solution for demanding applications. With a maximum voltage rating of 15 kVDC and a current rating of up to 6 Amp, this receptacle ensures reliable performance in extreme conditions with an operating temperature range of -55 to 125 °C. The threaded coupling style and robust ceramic insulator material guarantee secure connections. Compliant with RoHS standards and sealed for 1 ATM pressure differential, this receptacle is designed for durability and longevity in high-voltage environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

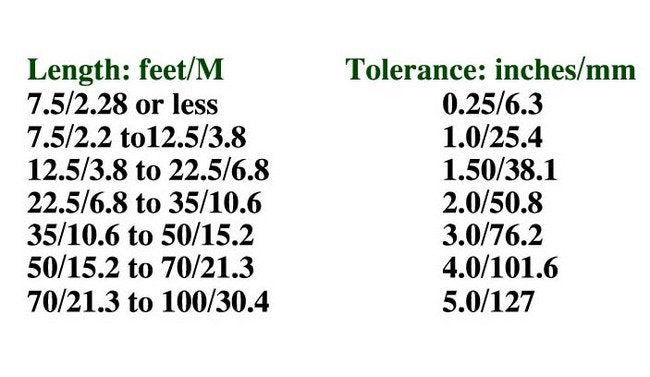

Product Specifications

Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male

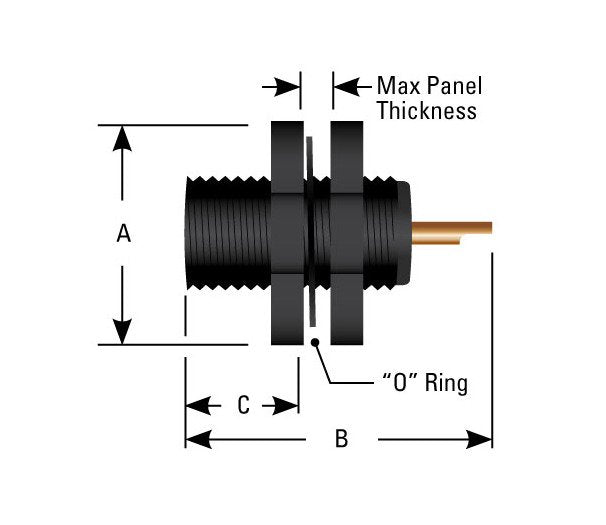

Dimensions A
.625 in | 15.88 mm
Dimensions B
.850 in | 21.59 mm
Dimensions C
.375 in | 9.53 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Ceramic | Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all Series 730,830 and LGH 1/2I lead assemblies. Also mates all 10 kVDC rated Reynolds C730 lead assemblies; this combination will reduce the upper operating temperature from +125ºC to +95ºC.
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Max Panel Thickness
.188 in | 4.78 mm
Specifications Operating Temperature
-55 to 125 ºC
Specifications Optional Mounting Hole A
.295 in | 7.49 mm
Specifications Optional Mounting Hole B
.323 in | 8.20 mm
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
5 to 6 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Seal Material
Silicone
Specifications Series
730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
