FS300 Series Baseplate Mounted Jib Crane
FS300 Series Baseplate Mounted Jib Crane
SKU:2TO-384006
Top-notch FS300 Series Jib Crane for heavy-duty applications. Smooth operation, precision load positioning, and enhanced safety features.
Regular price
$6,499.99
Regular price
Sale price
$6,499.99
Unit price
per
Initiate Order
FS300 Series Baseplate Mounted Jib Crane
$6,499.99
Quantity: 1
Claim Your Seller Account
FS300 Series Baseplate Mounted Jib Crane
$6,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

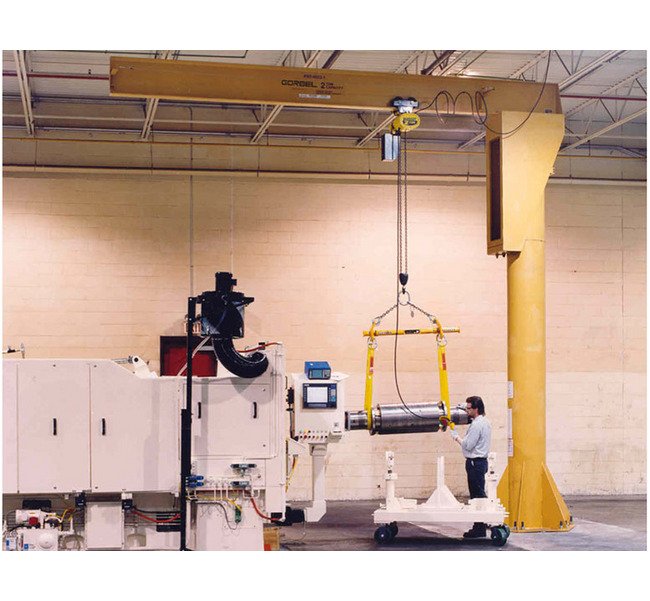

The FS300 Series Baseplate Mounted Jib Crane is designed for heavy-duty applications, with a capacity ranging from 2 to 5 tons. Gorbel's top-notch crane features precision tapered roller bearings for smooth operation and long life, full supporting triangular base plate gussets for minimized deflection, and ease of precise load positioning. Installation is effortless with independent head assembly and recessed bearing assembly, allowing for reduced clearances. Safety features include head retaining pin for resistance to accidental dislodgement. This crane is pre-engineered for powered hoists, meeting stringent performance standards.
Product Specifications
Additional Information 0

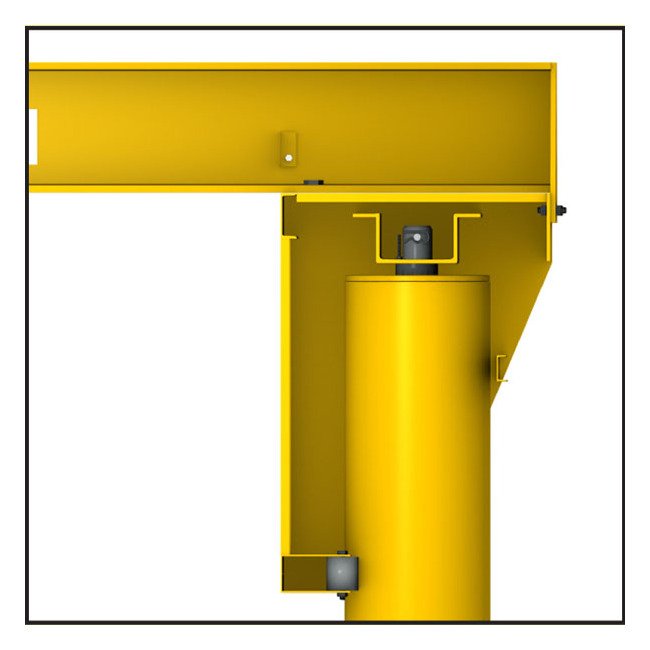

Designed for PerformanceGorbel's boxed style head provides benefits from installation through operation of the jib crane.The design allows for installation of the head prior to the boom, which reduces the required installation clearances and allows maximum hoist lift.The boxed style head also increases stability versus common sleeve-over-pipe designs. The result is less deflection and bouncing of the load, which creates a safer application with reduced risk of product damage.
Gorbels Advantage 0
Ease of OperationAllows operators to position loads precisely, effortlessly and efficientlyPrecision tapered roller bearings in top pivot and trunnion assemblies provide smooth operation and long lifeFull supporting triangular base plate gussets are used (in lieu of struts) to minimize crane deflection, thus making it easier to accurately position loadsEase of InstallationIndependent head assembly, installed separately from the boom for easier installationRecessed bearing assembly allows greatly reduced clearances needed for installationBolted head/boom connection which permits separate installation and provides maximum lift for the hoist, since it can be installed very close to the underside of the lower ceiling obstruction for greater headroomMovable bolted trolley stopsIn-head totally enclosed, bottom entry collector assembly allows the option of easily adding power to the hoist for 360º rotation at the time of or after purchaseSafetyHead retaining pin provides resistance to accidental upward dislodgement of the headFull Rated CapacityPre-engineered for use with powered hoists. A factor of 15% of the jib crane capacity is allowed for the hoist and trolley weight with an additional 25% of the capacity allowed for impact, thus giving full rated capacity use of the jib
Note 0

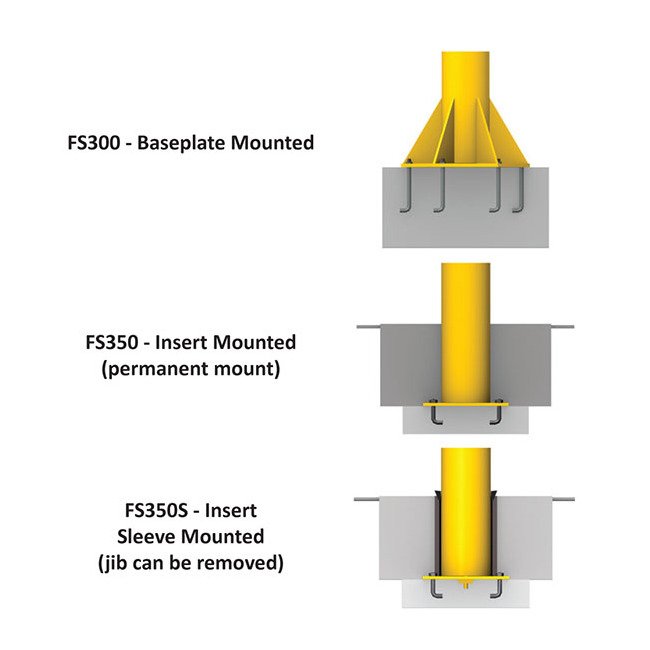

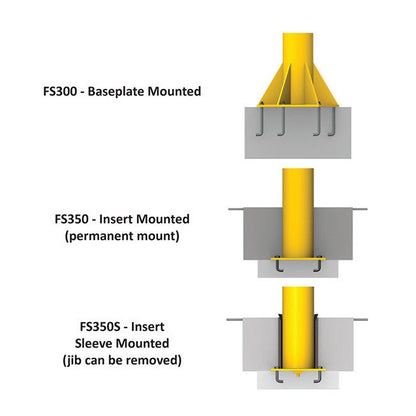

Power rotation is an available option.30 ft Span Jibs Available.Other Models, Sizes and Capacities Readily AvailableFS350 (insert mounted), FS350S (sleeve insert mounted), and other spans, heights, and capacities are available by contacting your local Gorbel® dealer.Dimensions are subject to change without notice.

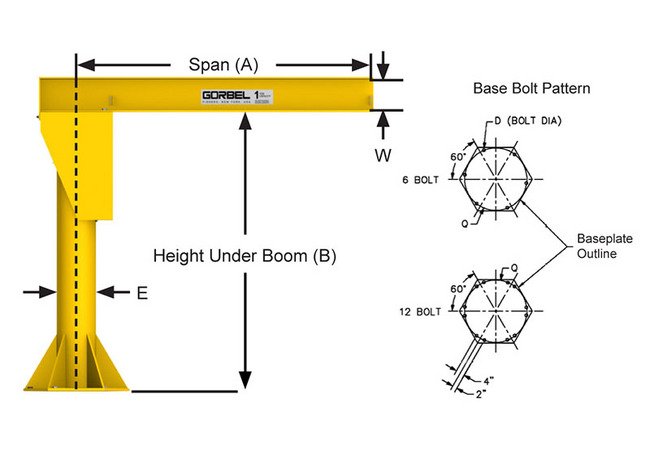

Specifications Capacity
2 ton
Specifications Height Under Boom Hub B
8 ft
Specifications Mounting Style
Free Standing Style
Specifications Rotation Angle
360 º
Specifications Span A
14 ft
