Chicago Rivet & Machine Co. →

Full-Tubular Rivets

Full-Tubular Rivets

SKU:CUS-448b4a

N/A

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Full-Tubular Rivets

Full-Tubular Rivets

$49.99

Quantity: 1

Claim Your Seller Account

Full-Tubular Rivets

Full-Tubular Rivets

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

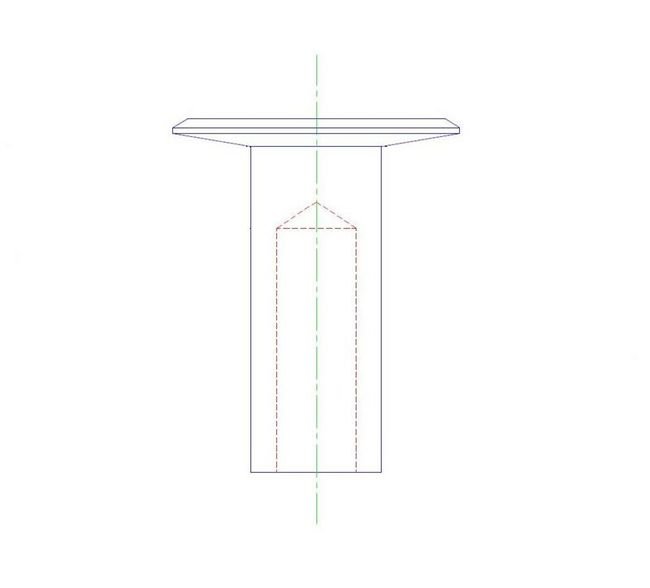

Full-tubular rivets contain a deep drilled part that possesses a hole-depth equal or greater than 112% of the mean body diameter. Full-tubular rivets are used to punch their own hole in softer materials, such as fabric, leather, canvas, and chipboard. These full-tubular rivets have the ability to be inserted and clinched in one operation. Minimum order quantity is 25,000 pieces.Materials include: carbon steel, stainless steel, aluminum, brass & copper.Head shapes include: oval, flat, counter-sunk & trussA wide variety of finishes are available to provide corrosion resistance and cosmetic appearance to suit your requirements.Please contact our engineering department to discuss your requirements, should they not be listed.

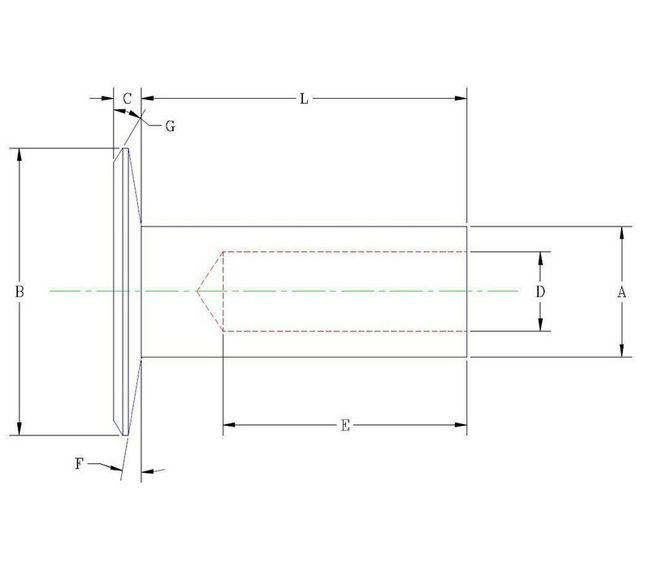

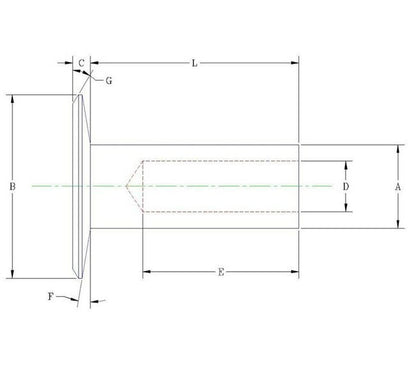

Product Specifications

Specifications A Body Diameter
.182 to .188 Inch
Specifications Body Diameter
3/16 Inch
Specifications B Head Diameter
.430 to .444 Inch
Specifications C Head Height
.058 to .068 Inch
Specifications D Straight Hole Diameter
.136 Inch
Specifications E Hole Depth
5/32 Inch | 7/32 Inch | 9/32 Inch | 11/32 Inch
Specifications F Angle
10 º
Specifications G Angle
20 º
Specifications Head Type
Spline Socket
Specifications L
3/16 Inch | 4/16 Inch | 5/16 to 6/16 Inch | 7/16+ Inch
Specifications Material
1018 Steel
