Full-Tubular Rivets
Full-Tubular Rivets
SKU:CUS-e92f16
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Full-tubular rivets contain a deep drilled part that possesses a hole-depth equal or greater than 112% of the mean body diameter. Full-tubular rivets are used to punch their own hole in softer materials, such as fabric, leather, canvas, and chipboard. These full-tubular rivets have the ability to be inserted and clinched in one operation. Minimum order quantity is 25,000 pieces.Materials include: carbon steel, stainless steel, aluminum, brass & copper.Head shapes include: oval, flat, counter-sunk & trussA wide variety of finishes are available to provide corrosion resistance and cosmetic appearance to suit your requirements.Please contact our engineering department to discuss your requirements, should they not be listed.

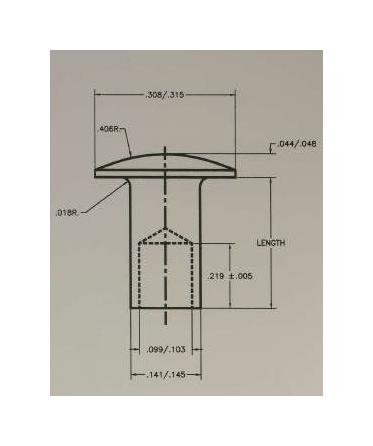

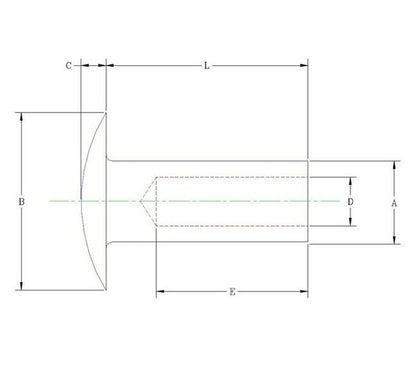

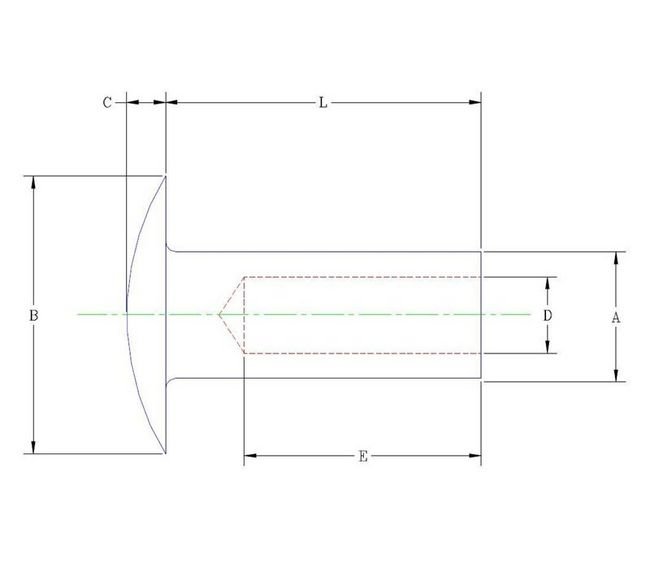

Product Specifications
Specifications A Body Diameter
.141 to .145 Inch
Specifications Body Diameter
9/64 Inch
Specifications B Head Diameter
.308 to .315 Inch
Specifications C Head Height
.044 to .048 Inch
Specifications D Straight Hole Diameter
.099 to .103 Inch
Specifications E Hole Depth
7/32 Inch
Specifications Head Type
Oval Head
Specifications L
4/16 to 9/16 Inch
Specifications Material
C1008 Steel
