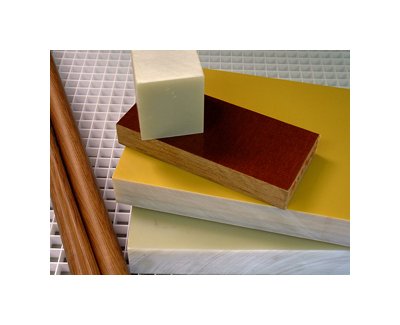

G-11 Glass Epoxy Sheet
G-11 Glass Epoxy Sheet
SKU:SHA-7959b7
Discover G-11 Glass Epoxy Sheet - a reliable thermoset composite laminate offering superior mechanical & electrical properties for demanding applications.
Regular price
$45.00
Regular price
Sale price
$45.00
Unit price
per
Initiate Order
G-11 Glass Epoxy Sheet
$45.00
Quantity: 1
Claim Your Seller Account
G-11 Glass Epoxy Sheet
$45.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The G-11 Glass Epoxy Sheet, meeting MIL-I-24768/28 GEB-F industrial standards, is a thermoset composite laminate renowned for its exceptional mechanical, thermal, and electrical properties. Crafted from woven fiberglass cloth and epoxy resin binder, this sheet offers high heat resistance, unmatched strength, and robust dimensional stability. Ideal for a wide range of mechanical and electrical applications, it combines resiliency, ease of fabrication, and superior electrical properties to deliver reliable performance in demanding environments. With strengths in impact resistance, compressive strength, and thermal stability, the G-11 Glass Epoxy Sheet is a trusted choice for critical applications.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
0.83 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
0.72 x 10-5 in/in/ºF
Specifications Compressive Strength
75000 psi
Specifications Density Astm D792
1.85 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
530 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
15 x 105 psi
Specifications Flexural Modulus Lengthwise Astm D790
17 x 105 psi
Specifications Flexural Strength Crosswise Astm D790
62000 psi
Specifications Flexural Strength Lengthwise Astm D790
70000 psi
Specifications Hardness Rockwell Astm D785
M110
Specifications Izod Impact Strength Notched Crosswise Astm D256
10 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
13 ft·lb/in
Specifications Maximum Operating Temperature
400 ºF
Specifications Sheet Size
36 x 48 in
Specifications Tensile Strength Crosswise Astm D638
44000 psi
Specifications Tensile Strength Lengthwise Astm D638
48000 psi
Specifications Thickness
0.031 in
Specifications Tolerance
± 0.0065 in
Specifications Water Absorption 24 Hrs At 0125 Astm D570
0.15 %
Specifications Weight
0.31 lb/ft²
