Galvanic Isolated 2-Channel Transducer Amplifier-Digitizer
$899.99
Quantity: 1
Claim Your Seller Account
Galvanic Isolated 2-Channel Transducer Amplifier-Digitizer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

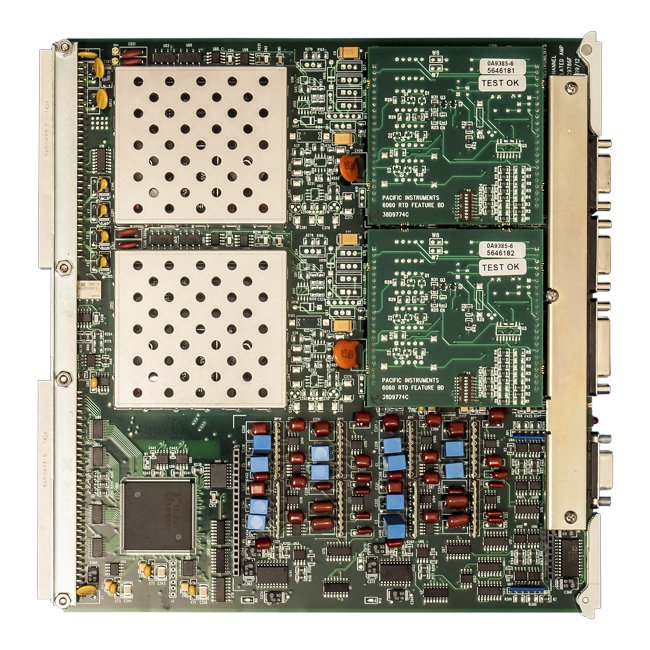

The Galvanic Isolated 2-Channel Transducer Amplifier-Digitizer is a cutting-edge solution for signal conditioning with exceptional features. With galvanic isolation, versatile excitation options, and a wide analog bandwidth of up to 100 kHz, this module ensures precise and reliable data acquisition. The programmable filter and high-resolution digitizer support sampling rates of up to 200 kS/s per channel. Its compatibility with various transducer types and automatic calibration features make it ideal for demanding measurement applications in both consumer and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
6060: 50 kHz for gains <1,000, 20 kHz for gains greater than 1,000.6060HF: 100 kHz for gains <1,000, 50 kHz for gains greater than 1,000.
Amplifier Cm Voltage
Common Mode ±300 Volts operating, ±350 Volts without damage.
Amplifier Common Mode
80 dB plus gain in dB to 120 dB for balance input and 110 dB for a 350 Ohm source unbalanced, ±300 Volts, DC to 60 Hz.
Amplifier Gain
Programmable from 1 to 5,000 in 1, 2, 3, 5 steps with ±0.05% accuracy.
Amplifier Gain Linearity
±0.02% for gains <1,000, ±0.025% for gains 1,000 and higher
Amplifier Gain Stability
±0.01% for 30 days, ±0.004%/ºC.
Amplifier Impedance
50 Megohms, shunted by 500 pF.
Amplifier Input Protection
±50 Volts, differential or ±350 Volts common mode without damage.
Amplifier Input Range
±2 mV to ±10 Volts full scale, DC or AC coupled.
Amplifier Noise 10 Khz
2.0 µV RTI plus 1.0 mV RTO, RMS.
Amplifier Slew Rate
5 V/µS
Amplifier Source Current
±25 nA, ±0.05 nA/ºC.
Amplifier Zero Amplifier
Automatic zero ±1.0 mV. Stability is ±5 µV RTI, ±1 mV RTO, ±1 µV RTI/ºC, ±0.2 mV RTO/ºC. Short term ±2 µV RTI, ±0.4 mV RTO.
Amplifier Zero Stability
±1 µV/°C RTI, ±0.2 mV/°C RTO or (±1 µV RTI, ±0.2 mV RTO) /°C
Bridge Input Bridge Balance
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005%/ºC. Supplied range is 2 mV/V (350 Ohm bridge).
Bridge Input Bridge Configuration
2 channels, 2 to 10 wire inputs. Programmable bridge completion for full and half bridges and 120 Ohm and 350 Ohm quarter bridges.
Calibration Shunt Calibration
Shunt Calibration based on capability of Installed Features Card.FC1: Two steps, single shunt, internal or external.FC2: Programmable resistive "DAC" shunt, 16-bit resolution.FC5: Four-step, single shunt, external.FC11: Four-step, double shunt, external.
Calibration Voltage Substitution
Voltage substitution, signal from external calibration source is applied to the amplifier input. Programmable attenuator with steps of 1, 0.1 and 0.01, ±0.02% accuracy. Output of the attenuator is provided for calibration.
Calibration Zero Calibration
Amplifier input disconnected and shorted.
Constant Current Excitation Transducer Power Current Excitation
Programmable 0.1 mA to 51.2 mA with 1 µA resolution. Calibrated 5 mA steps ±0.1%.
Constant Current Excitation Transducer Power Current Excitation
2 µA or 5 µV peak-to-peak DC to 10 kHz.
Constant Current Excitation Transducer Power Current Monitor
Excitation voltage or current is read by a program instruction. Accuracy is ±0.2%.
Constant Current Excitation Transducer Power Current Regulation
±0.01% or ±0.1 µA for 10% line change.
Constant Current Excitation Transducer Power Current Stability
±0.01% or ±2 µA for 30 days. Temperature coefficient is less than ±0.005% or ±1 µA/ºC.
Constant Current Excitation Transducer Power Minimum Compliance
0.1 to 20 V
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Linearity
±1 1/2 LSB (±0.004%)
Digitizer Rate
6060: Programmable up to 100 kS/s digitizer per channel.6060HF: Programmable up to 200 kS/s digitizer per channel.
Digitizer Resolution
16 bits, two's complement output.
Digitizer Sample
±50 ns channel-to-channel time correlation.
Filter Other
Other filter characteristics and cut offs are available.
Filter Programmable Filter
6060: 4-Pole Bessel, continuously programmable 4 Hz to 10 kHz. | 6060HF: 4-Pole Bessel, continuously programmable 10 Hz to 20 kHz.
Overview Analog Bandwidth
50 kHz | 100 kHz
Overview Excitationtransducer Power
Current | ICP | Voltage
Voltage Excitation Transducer Power Voltage Excitation
Programmable from 0.1 to 20 Volts with 0.5 mV resolution. Calibrated 2-Volt steps ±0.1%. 50 mA limited to 70 mA maximum.
Voltage Excitation Transducer Power Voltage Excitation Noise
200 µV peak-to-peak, DC to 10 kHz
Voltage Excitation Transducer Power Voltage Excitation Regulatio
Each channel individually regulated. ±0.01% over input voltage range and no-load to full-load.
Voltage Excitation Transducer Power Voltage Excitation Stability
±0.01% for 30 days. Temperature coefficient less than ±0.005%/ºC.
Voltage Excitation Transducer Power Voltage Monitor
Excitation voltage or current is read by a program instruction. Accuracy is ±0.2%.
