Galvanized Anchor Shackles 1.75" Screw Pin

Galvanized Anchor Shackles 1.75" Screw Pin

SKU:WIR-c98071

Heavy-duty Galvanized Anchor Shackle, meets RR-C-271D Type IV A standards, 2.2x proof load over 25-ton limit.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

Galvanized Anchor Shackles 1.75" Screw Pin

Galvanized Anchor Shackles 1.75" Screw Pin

$69.99

Quantity: 1

Claim Your Seller Account

Galvanized Anchor Shackles 1.75" Screw Pin

Galvanized Anchor Shackles 1.75" Screw Pin

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

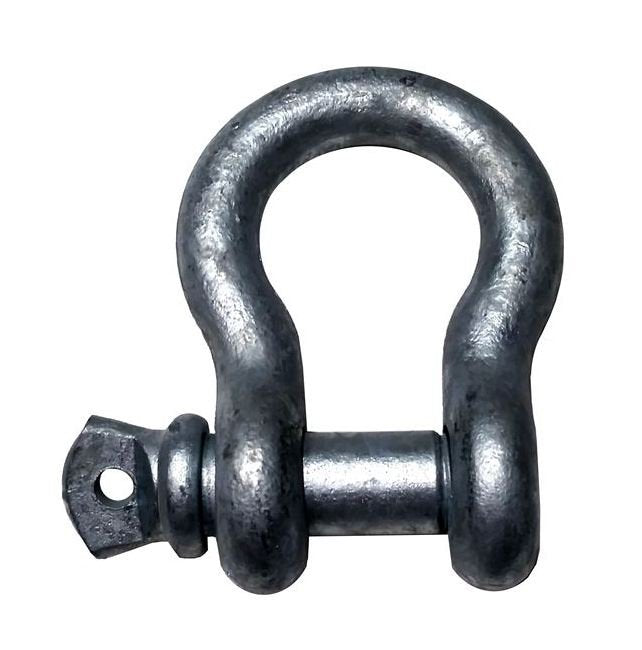

The Galvanized Anchor Shackles 1.75" Screw Pin is a heavy-duty wire rope hardware essential for lifting and towing applications. Constructed to meet Federal Specification RR-C-271D, Type IV A, Grade A, Class 2 standards, this drop-forged shackle features an alloy pin and offers a 2.2x proof load over its 25-ton working load limit. With precise dimensions and hot-dip galvanization, it ensures durability and corrosion resistance, making it ideal for rugged industrial use.

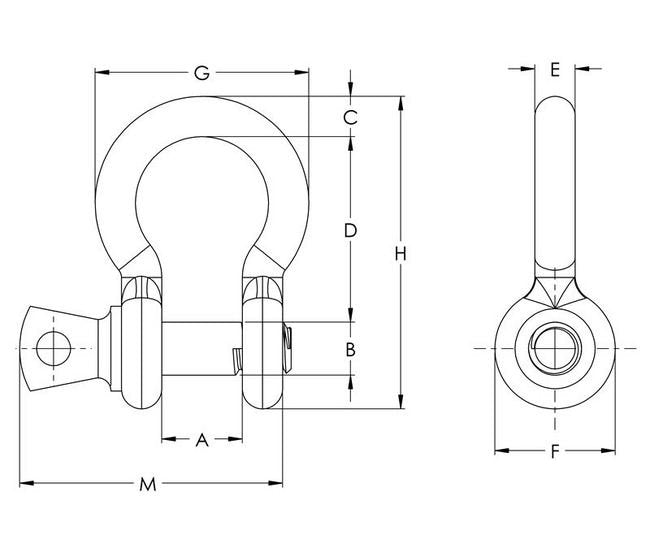

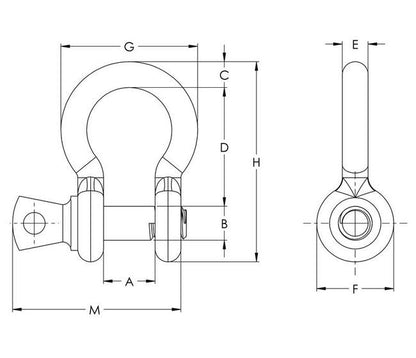

Product Specifications

Specifications A In
2.88
Specifications B In
2
Specifications C In
2.25
Specifications D In
7
Specifications E In
1.84
Specifications F In
4.19
Specifications G In
8.86
Specifications H In
12.34
Specifications M In
9.08
Specifications Nominal Size In
1.75
Specifications Weight Lbs
27.78
Specifications Wll Tons
25
CAGE
0T9L4
NAICS
332999
PSC
5340
