Galvanized Drop Forged Anchor Shackles

Galvanized Drop Forged Anchor Shackles

SKU:WIR-a97cf7

Premium quality Galvanized Drop Forged Anchor Shackles - Federal Spec RR-C-271D compliant. Ideal for lifting and towing operations.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Galvanized Drop Forged Anchor Shackles

Galvanized Drop Forged Anchor Shackles

$29.99

Quantity: 1

Claim Your Seller Account

Galvanized Drop Forged Anchor Shackles

Galvanized Drop Forged Anchor Shackles

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

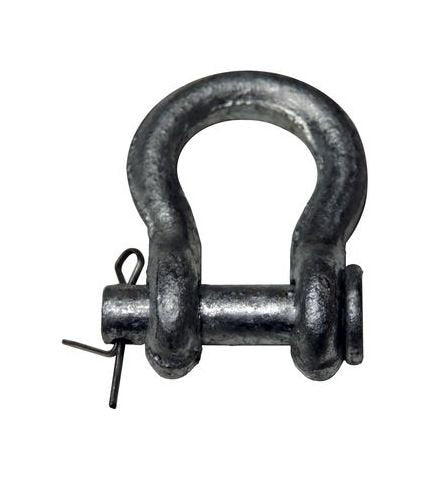

The Galvanized Drop Forged Anchor Shackles are engineered to meet the rigorous standards of Federal Specification RR-C-271D, Type IV A, Grade A, Class 1. These shackles are quenched and tempered, featuring an alloy pin for enhanced durability. With a proof load of 2.2 times the working load limit and an ultimate load capacity of 6 times the working load limit, these anchor shackles provide a reliable lifting and towing solution. Designed for wire rope loops, these shackles offer a secure and dependable connection for various applications.

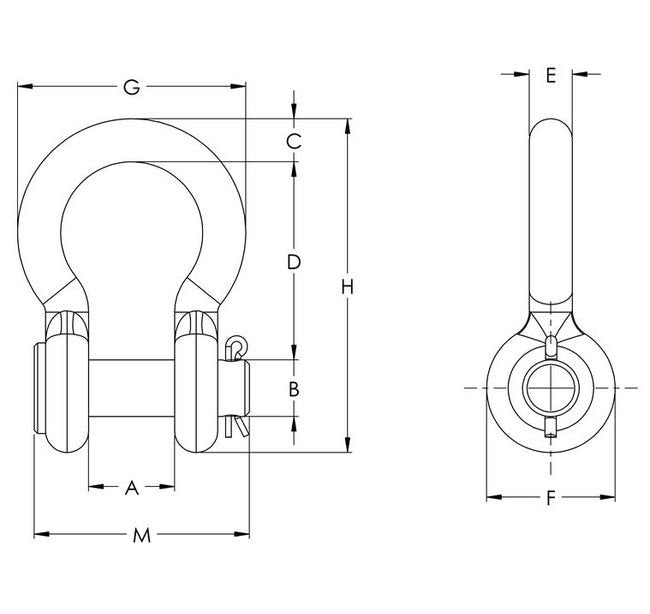

Product Specifications

Specifications A In
0.66
Specifications B In
0.44
Specifications C In
0.38
Specifications D In
1.44
Specifications E In
0.38
Specifications F In
0.91
Specifications G In
1.78
Specifications H In
2.49
Specifications M In
2.03
Specifications Nominal Size In
3/8
Specifications Weight Lbs
0.29
Specifications Wll Tons
1
CAGE
0T9L4
NAICS
332999
PSC
5340
