Galvanized Drop Forged Anchor Shackles - 1.125in

Galvanized Drop Forged Anchor Shackles - 1.125in

SKU:WIR-26c94e

Heavy-duty Galvanized Anchor Shackles for secure lifting. Conforms to Federal Spec RR-C-271D. 9.5T WLL.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Galvanized Drop Forged Anchor Shackles - 1.125in

Galvanized Drop Forged Anchor Shackles - 1.125in

$49.99

Quantity: 1

Claim Your Seller Account

Galvanized Drop Forged Anchor Shackles - 1.125in

Galvanized Drop Forged Anchor Shackles - 1.125in

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

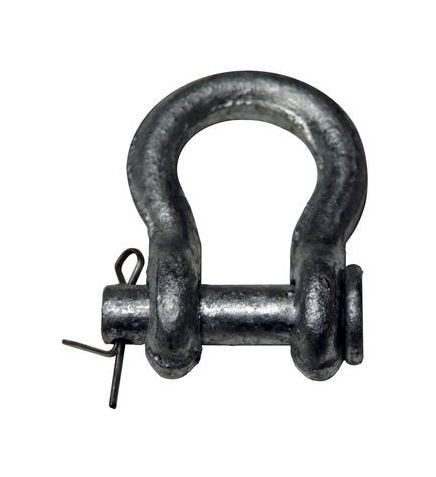

The Galvanized Drop Forged Anchor Shackles are precision-crafted to meet the demands of heavy-duty lifting applications. Complying with Federal Specification RR-C-271D, Type IV A, Grade A, Class 1, these shackles are quenched and tempered with an alloy pin for exceptional strength. The proof load is 2.2 times the working load limit, ensuring reliable performance. With a 9.5 ton working load limit and 6 times ultimate load, these shackles provide unparalleled safety and efficiency. Ideal for wire rope loops in lifting and towing operations.

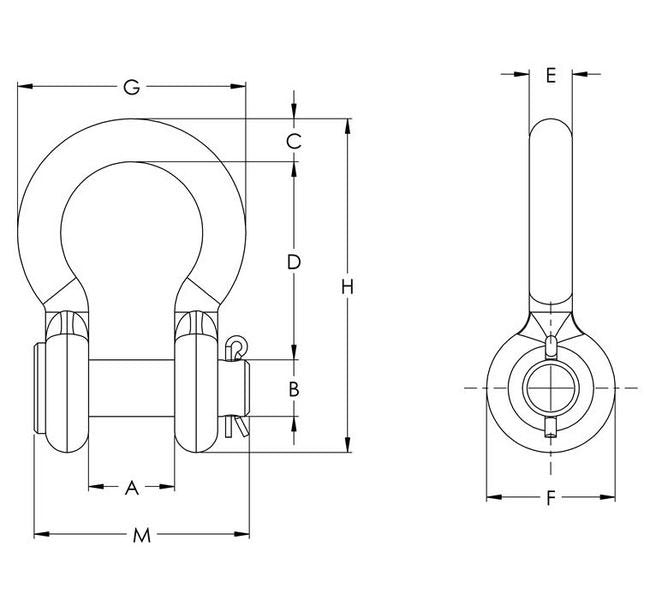

Product Specifications

Specifications A In
1.81
Specifications B In
1.25
Specifications C In
1.25
Specifications D In
4.25
Specifications E In
1.16
Specifications F In
2.69
Specifications G In
5.16
Specifications H In
7.47
Specifications M In
5.59
Specifications Nominal Size In
1.125
Specifications Weight Lbs
6.97
Specifications Wll Tons
9.5
CAGE
0T9L4
NAICS
332999
PSC
5340
