Galvanized Drop Forged Anchor Shackles Screw Pin
Galvanized Drop Forged Anchor Shackles Screw Pin
SKU:WIR-b9bed0
Heavy-duty Galvanized Anchor Shackles, Federal Spec RR-C-271D Type IVA, Grade A, Class 2, 3/4T WLL
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Galvanized Drop Forged Anchor Shackles Screw Pin
$12.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Anchor Shackles Screw Pin
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

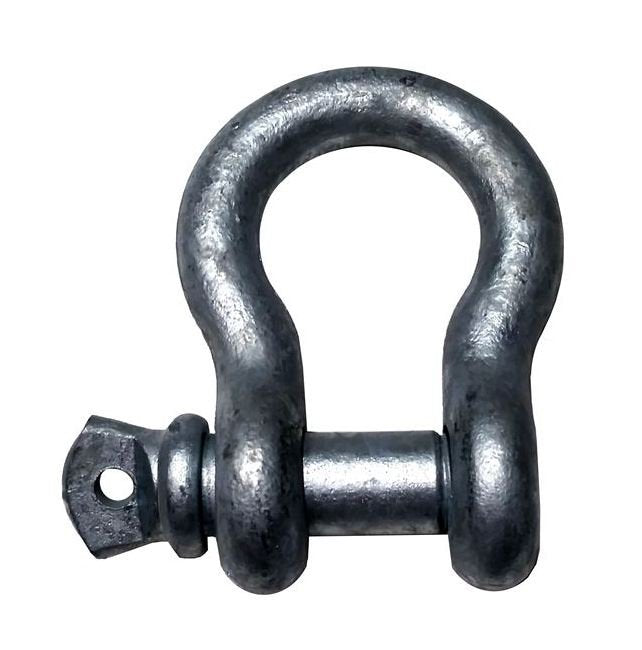

The Galvanized Drop Forged Anchor Shackles Screw Pin is a top-of-the-line product that meets Federal Specification RR-C-271D, Type IVA, Grade A, Class 2 standards. With a 3/4 ton working load limit and quenched, tempered alloy pin, this shackle is built for durability and safety. Ideal for lifting and towing applications, this shackle boasts a 2.2 times proof load and 6 times ultimate load capacity, ensuring reliable performance in demanding conditions.

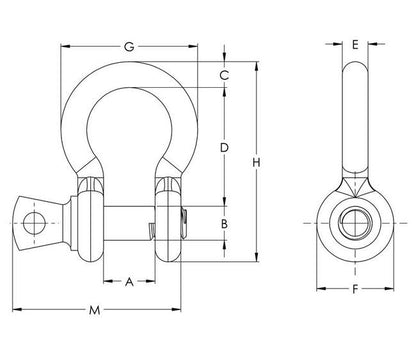

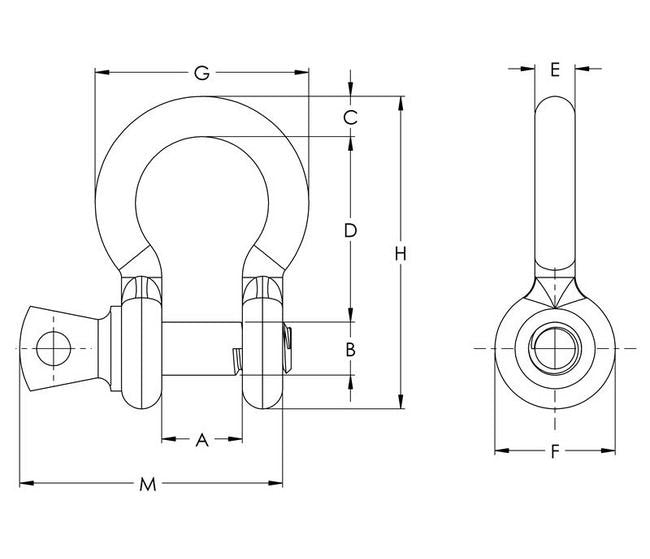

Product Specifications
Specifications A In
0.53
Specifications B In
0.38
Specifications C In
0.31
Specifications D In
1.22
Specifications E In
0.31
Specifications F In
0.75
Specifications G In
1.47
Specifications H In
2.09
Specifications M In
1.66
Specifications Nominal Size In
5/16
Specifications Weight Lbs
0.19
Specifications Wll Tons
3/4
CAGE
0T9L4
NAICS
332999
PSC
5340
