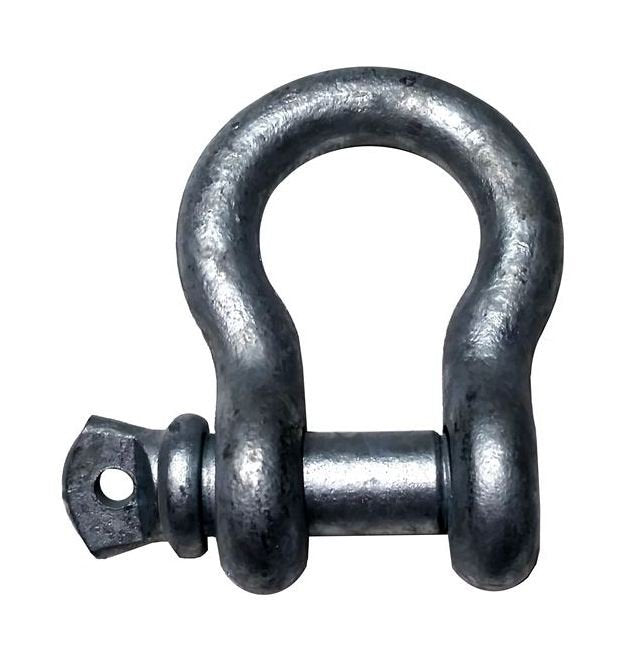

Galvanized Drop Forged Anchor Shackles Screw Pin 1.375 inches

Galvanized Drop Forged Anchor Shackles Screw Pin 1.375 inches

SKU:WIR-3d0624

Reliable Galvanized Drop Forged Anchor Shackle Screw Pin for lifting or towing operations.

Regular price $55.99
Regular price Sale price $55.99
Sale

Initiate Order

Galvanized Drop Forged Anchor Shackles Screw Pin 1.375 inches

Galvanized Drop Forged Anchor Shackles Screw Pin 1.375 inches

$55.99

Quantity: 1

Claim Your Seller Account

Galvanized Drop Forged Anchor Shackles Screw Pin 1.375 inches

Galvanized Drop Forged Anchor Shackles Screw Pin 1.375 inches

$55.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Galvanized Drop Forged Anchor Shackles Screw Pin is designed to meet the toughest standards, including Federal Specification RR-C-271D, Type IV A, Grade A, Class 2. With a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit, this shackle ensures reliable performance in lifting or towing operations. Featuring a nominal size of 1.375 inches and a working load limit of 13.5 tons, this shackle offers exceptional strength and durability. Get the job done with confidence and precision using this top-quality shackle.

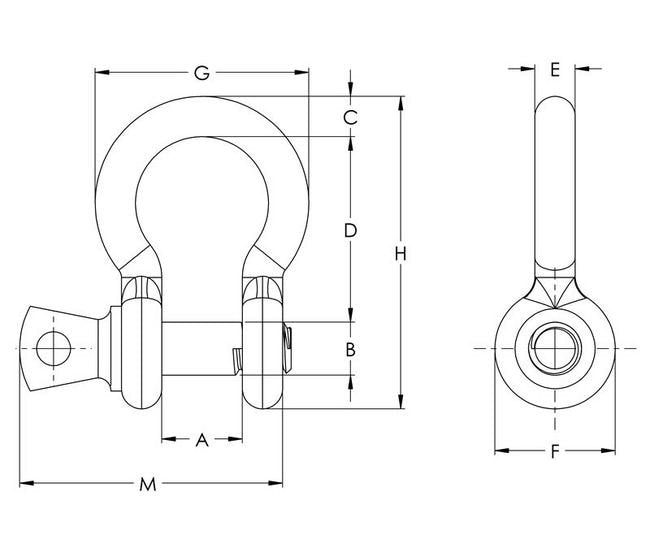

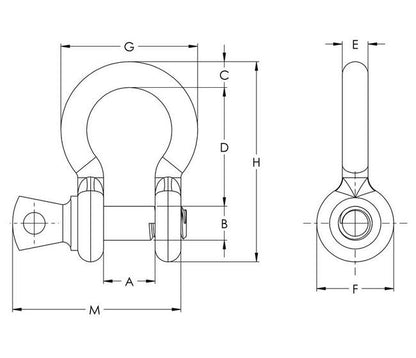

Product Specifications

Specifications A In
2.25
Specifications B In
1.5
Specifications C In
1.5
Specifications D In
5.25
Specifications E In
1.42
Specifications F In
3.31
Specifications G In
6.38
Specifications H In
9.16
Specifications M In
6.84
Specifications Nominal Size In
1.375
Specifications Weight Lbs
13.53
Specifications Wll Tons
13.5
CAGE
0T9L4
NAICS
332999
PSC
5340
